SEDA TL-1 600 / 1800

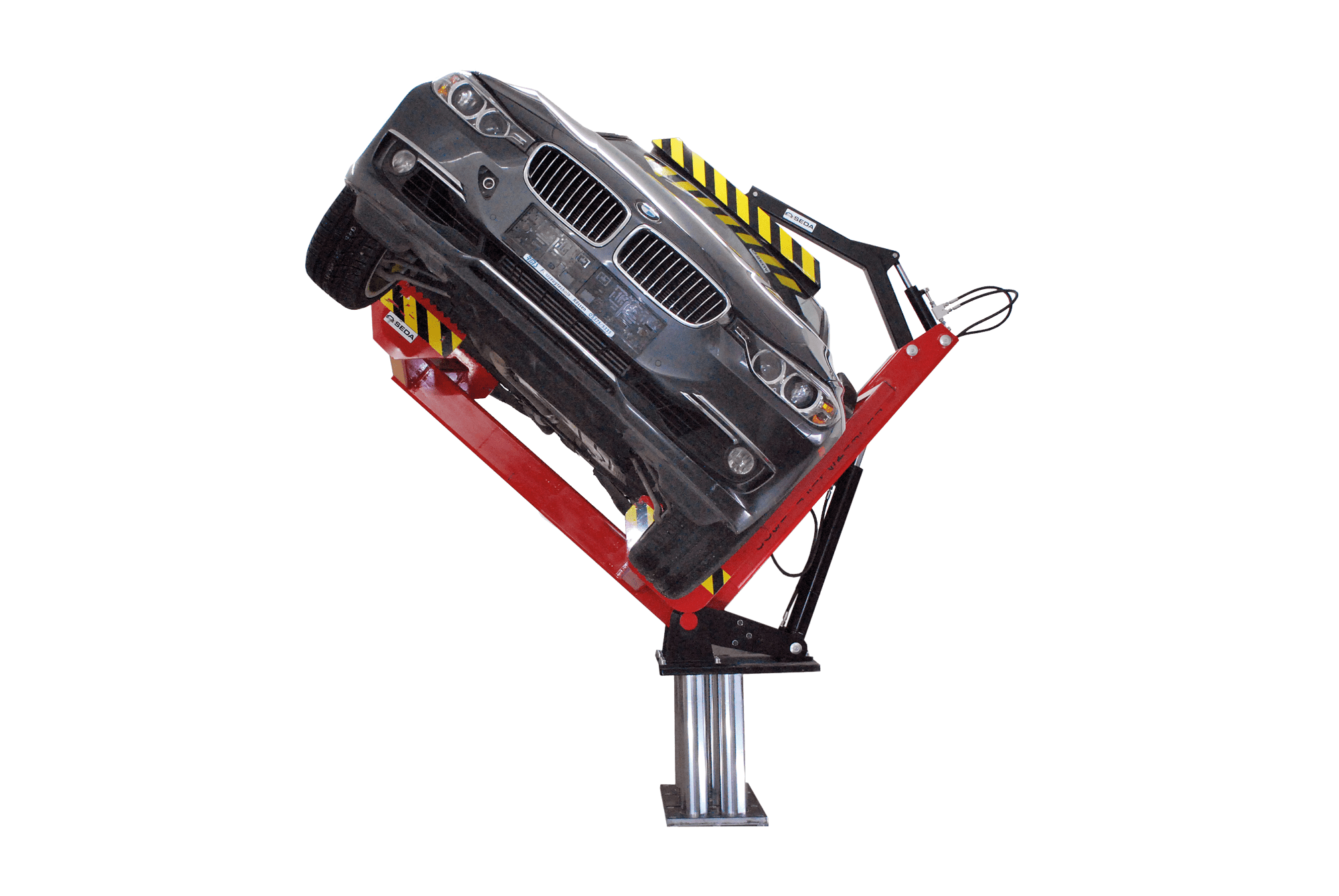

The SEDA Tilt Lift TL-1 is an underground tilting platform with a specialized lifting function that moves the vehicle instead of the worker.
The vehicle is positioned on the tilting platform using a forklift or trolley and secured with a safety system. The securing arm is designed flexibly and can be adapted to all common car models with various optional attachments. Once the vehicle is secured, it can be tilted up to 90°. Additionally, the SEDA Tilt Lift allows for a stepless elevation of the vehicle to a maximum lifting height of 600 or 1800 mm.
Technical Data
| Control system | hydraulic |
| Lifting height | up to 6 ft |
| Load capacity | 8800 lbs |
| Power output | 3 kW |
| Oil volume | 14 qt |
| Power supply | 400 V or 230 V 3-phase |
| Größe Kippbühnetilting platform dimensions | 59 x 102 x 98″ |
Order Number
| A-527511-H | SEDA TL-1 600 |
| A-527512-H | SEDA TL-1 1800 |
| Alternative | |
| A-527800 | SEDA TL-2 |
| A-527493-H | SEDA tilt lift |
| Optional | |
| A-527625 | SEDA vehicle trolley |
Downloads
Benefits
- Simple and ergonomic vehicle handling
- Underground installation
- Stepless 90° rotation
- Available with lifting heights of 600 or 1800 mm
- Hydraulic control system
Video
Additional Information
The Tilt Lift TL-1 is particularly useful for dismantling engines and transmissions. In the tilted position, screws and fasteners can be easily removed, and the lifting function makes it simple to extract the engine or other heavy components.
