SEDA Recovery System

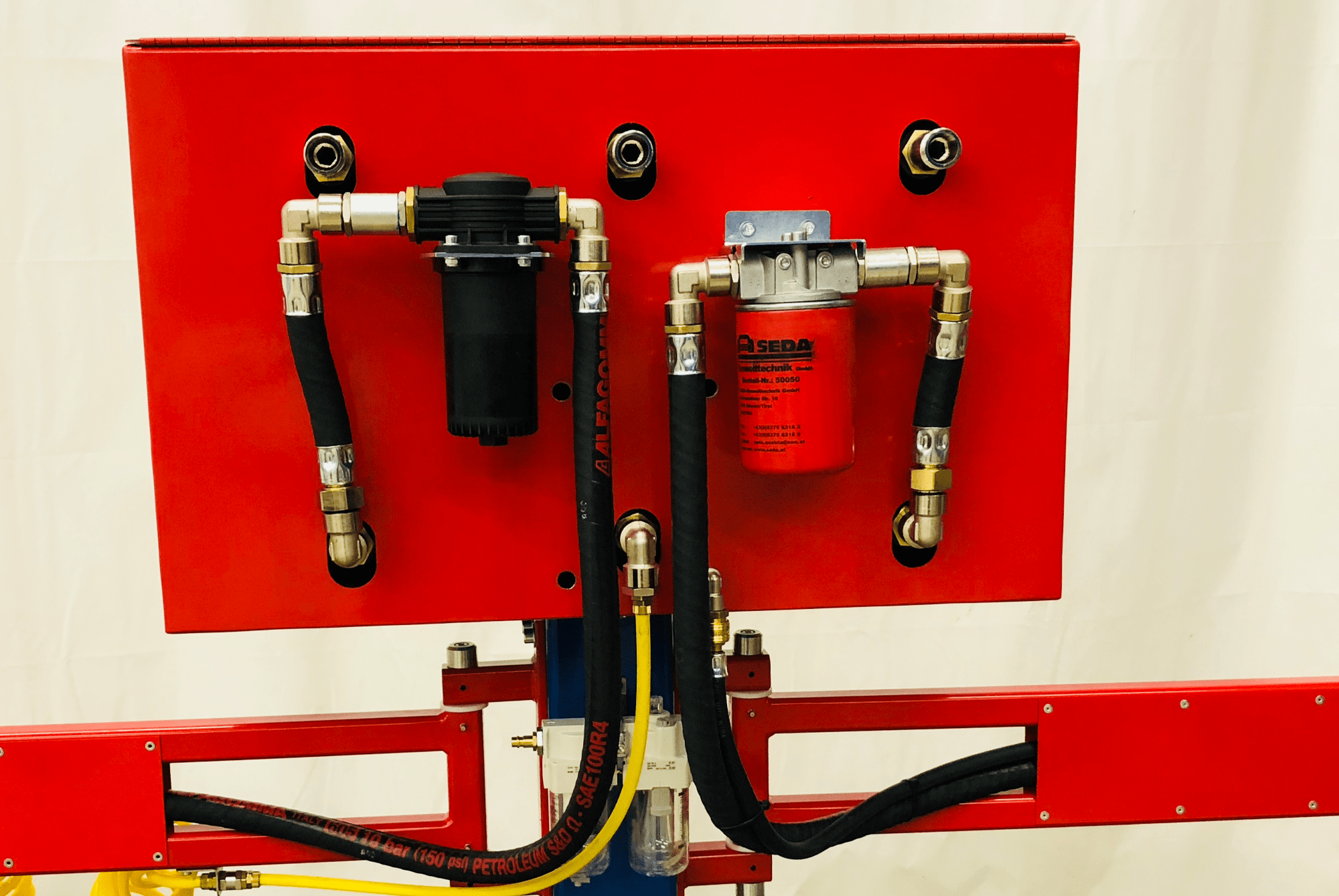

The SEDA RS is fully powder coated and comes with fuel and oil filters on the back for easy access, this system removes fuel, waste oils and antifreeze but can also be configured to remove wiper fluid and comes standard with an air processing unit (air oiler and dehumidifier) on the back. Both double oil funnels and HD fuel drill come on swing arms as standard to maximize ease of use.

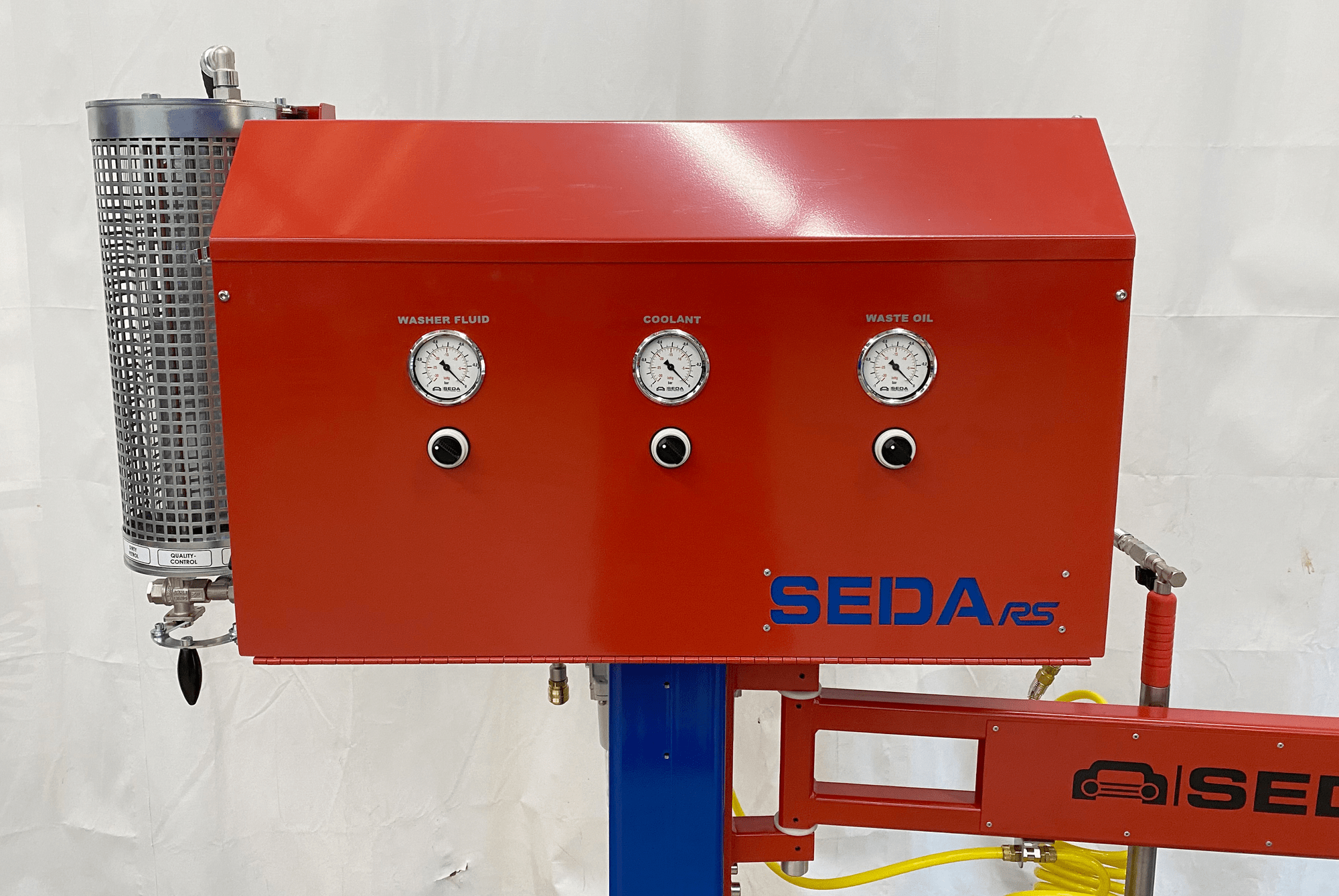

This unit is ideally suited to be placed under an existing vehicle rack or added to a vehicle ramp as the pump box stands on 5 ft high. Optional oil drill on swingarm instead of double oil funnels. On the front of the SEDA RS you will find the pump switches and vacuum gauge conveniently located.

Technical Data
Compressed Air | 123 psi – 42 cfm* |
Fluids | Fuels Waste oils Antifreeze Wiper fluid* Brake fluid* |
Space requirement | 8.9 x 2.6 x 5.4 ft |
Weight | 330 lbs |
Order number
528201 US | SEDA RS |
Alternative system | |
40215 | SEDA Greenpoint |
51073 US | SEDA Jumboline |
Downloads
Benefits
- Complete solution
- ATEX certification
- Compact and efficient
- Fully powder coated
- Built-in pumps
- Space saving
- Easy maintenance
