Mobile End-of-Life Vehicle Depollution System
SEDA MDS2 Platform DrainLift

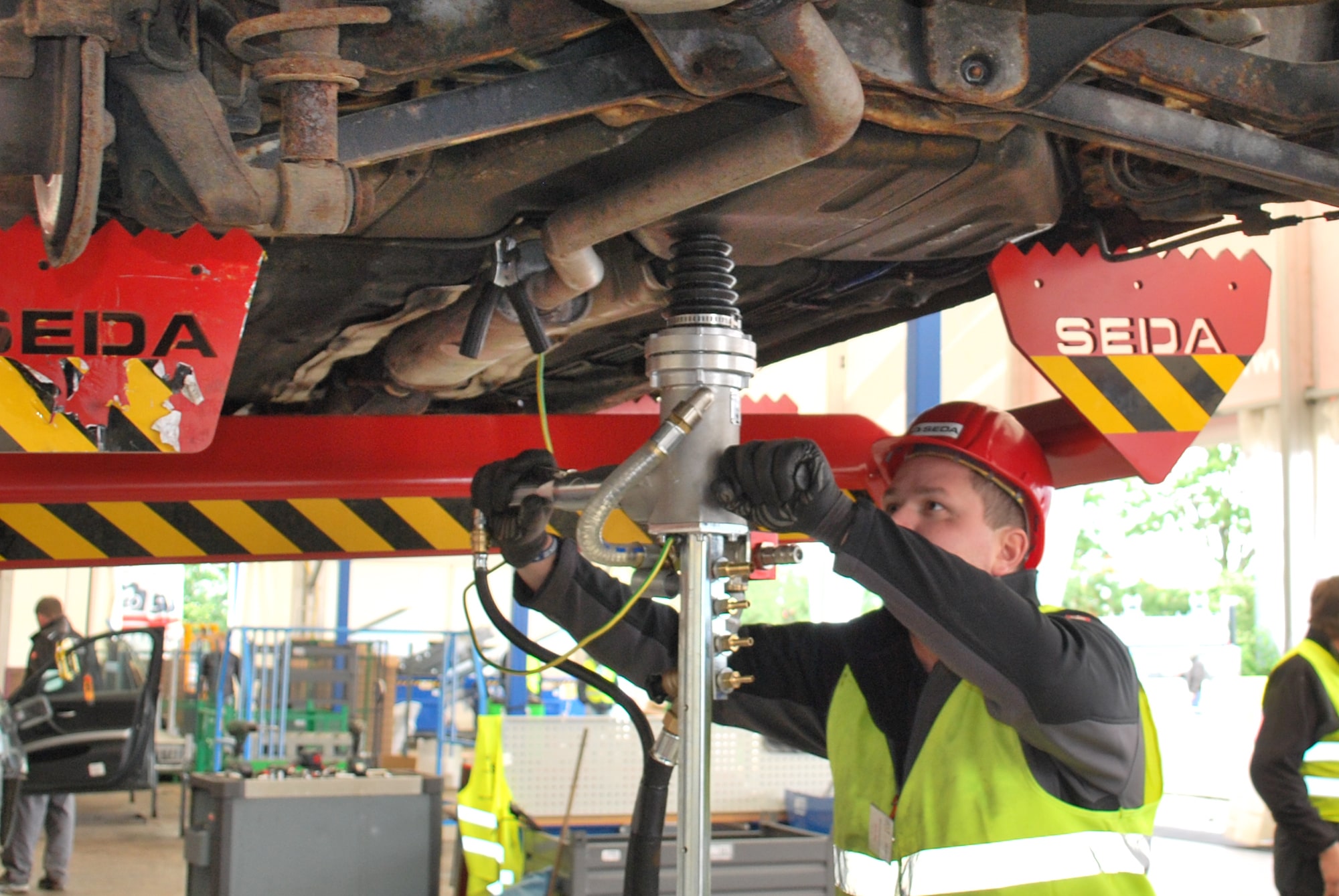

The SEDA MDS2 Platform DrainLift combines an electro-hydraulic or pneumatic single-column lift with SEDA‘s proven depollution technology on a mobile platform.
This combination enables not only efficient depollution but also the straightforward execution of basic dismantling tasks directly on the platform.
Bookmark
Integrated collection trays eliminate the need for a liquid-tight floor
Removal of engine and transmission oil via dual funnels on a pneumatic swivel arm
Powerful single-column lift with a 3.5 t load capacity
Fuel extraction via tank drilling device on a swivel arm
High-performance double diaphragm pumps in a space-saving pump housing
Pre-installed hoses and connections
Technical Data
| Lifting height | up to 5.9 ft |
| Total height | 7.9 ft |
| Lifting time | approx. 30 seconds |
| Load capacity | 3.5 tonne |
| Power output | 3 kW |
| Power supply | 3 PH/400 V/50 Hz |
| Space requirement | 19.7 x 14.7 x 12.5 ft |
| Compressed Air | 116 psi – 43 CFM |
| Fluids | Gas / Diesel Waste Oil Brake Fluid Antifreez Wiper Fluid |
Order Number
| A-51091 | SEDA MDS2 Platform DrainLift |
| Optional accessories | |
| C-527621 | Platform extension (16.4 x 1.8 x 0.6 ft) |
| C-528195 | TPF5 Tank platform with storage tanks for gas, diesel, waste oil, wiper fluid and antifreez |
Downloads
Benefits
- Depollution and dismantling in a single system
- Mobile complete solution
- High safety standards with CE and ATEX certification
- Electro-hydraulic/pneumatic control system (Ex-certified)
