SEDA Vehicle Trolley

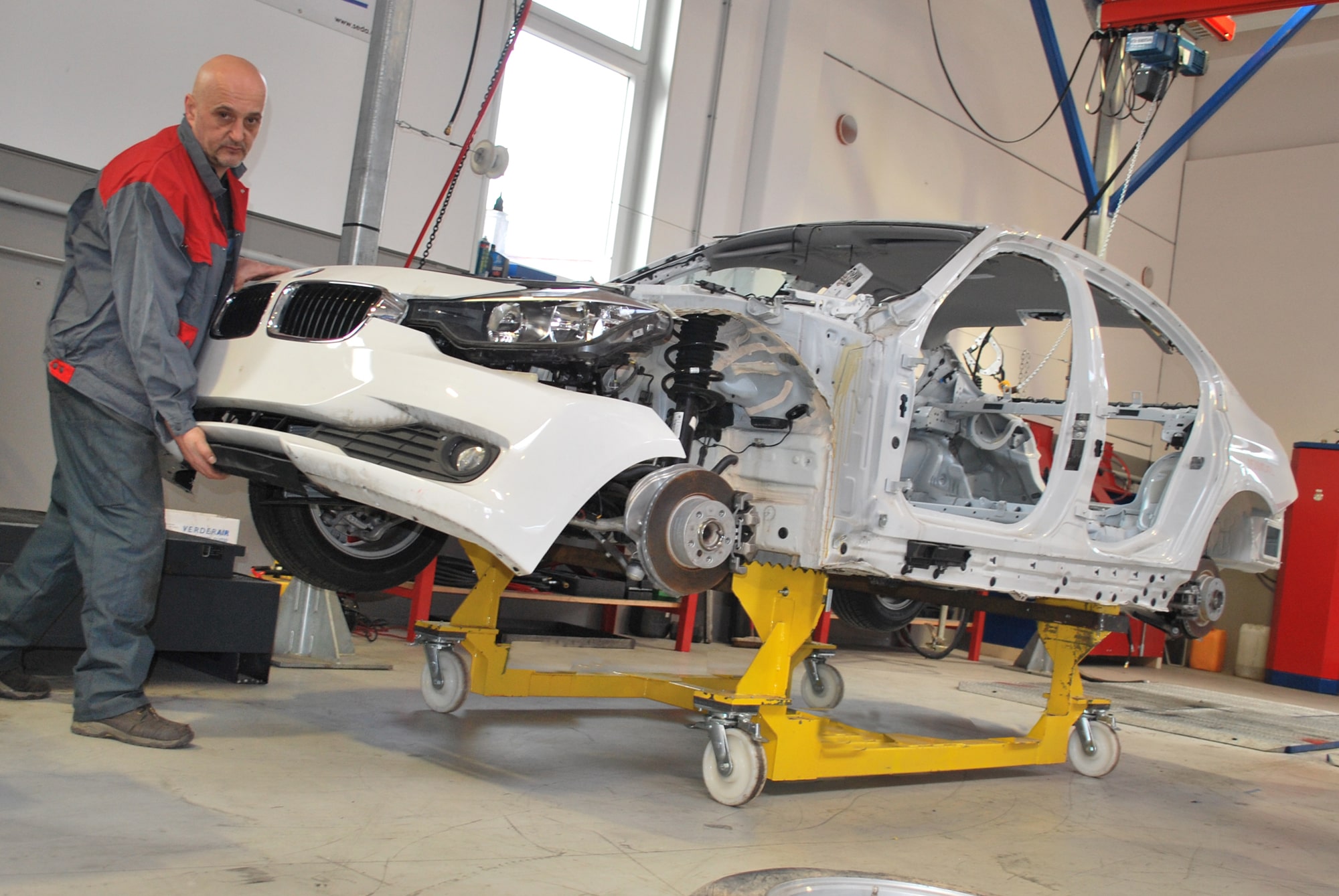

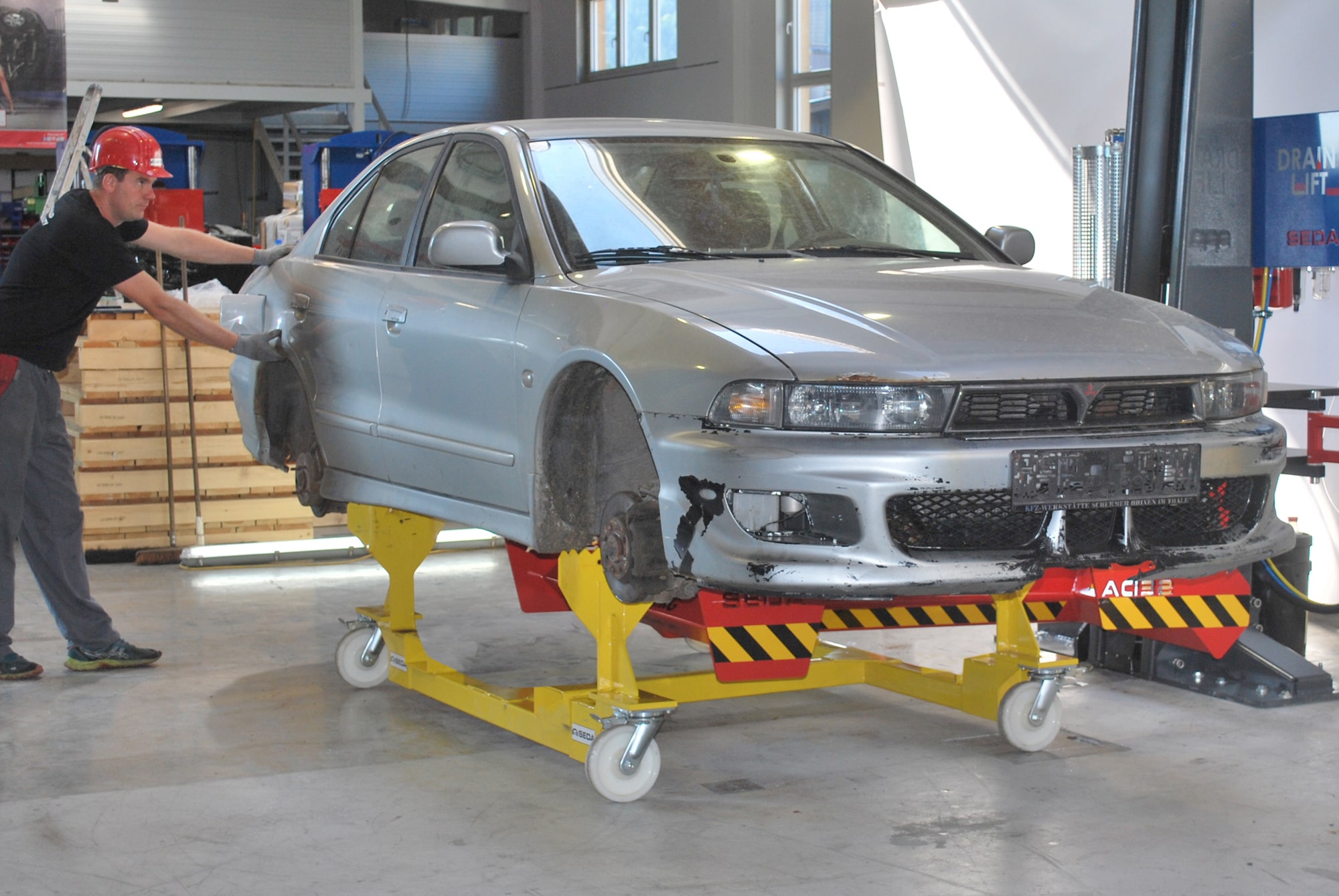

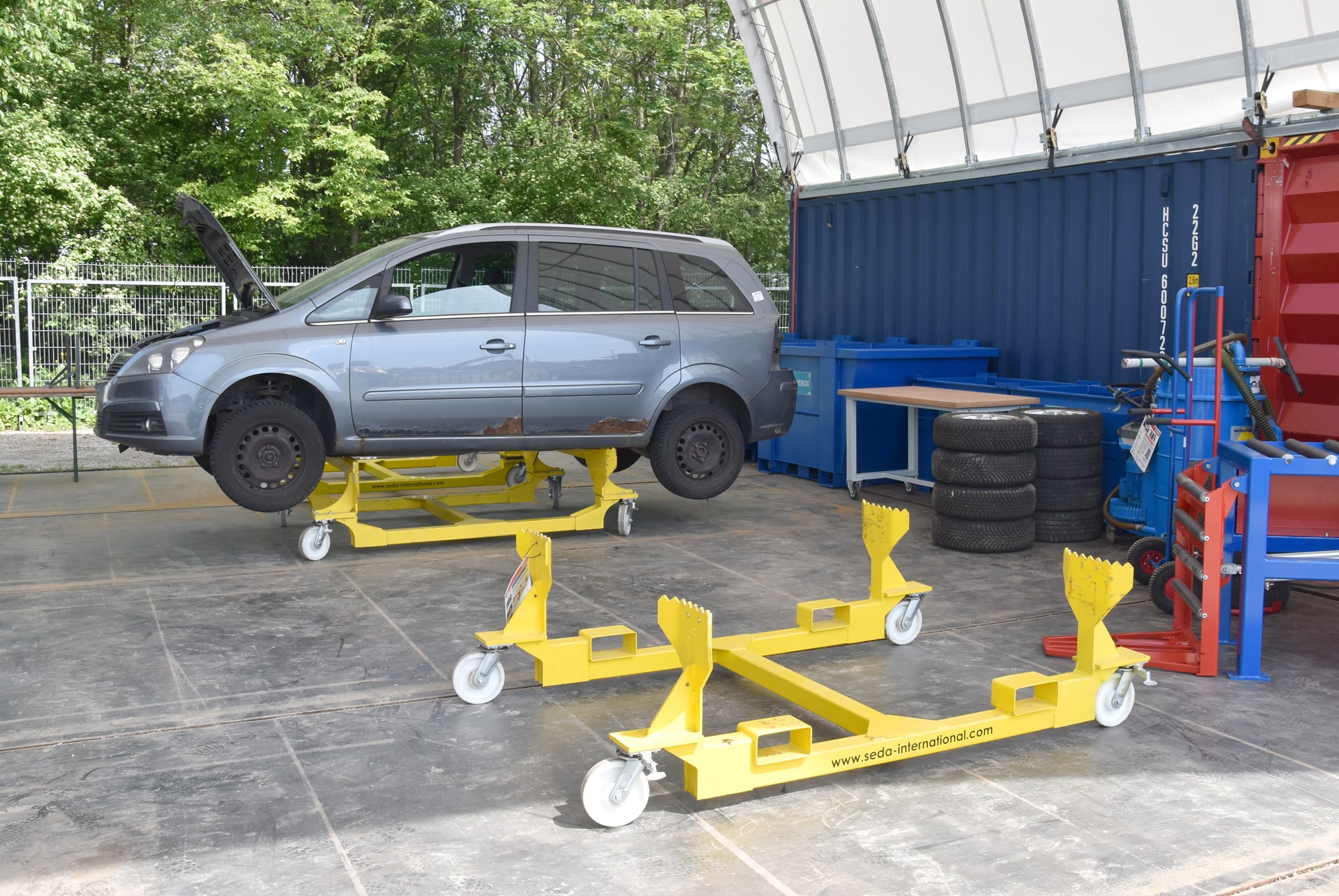

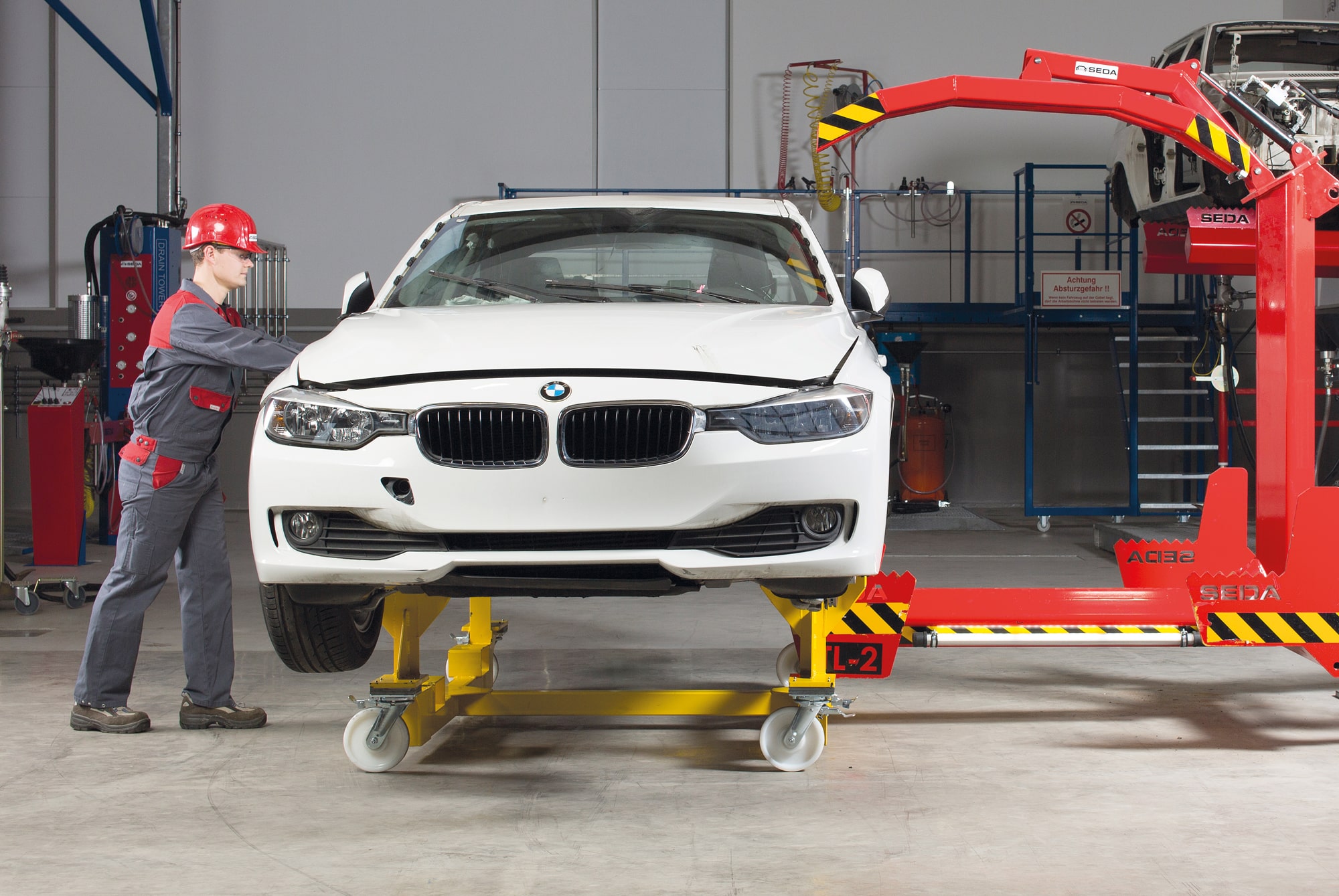

The SEDA Vehicle Trolley is specifically designed for SEDA tilt lifts and single-post hoists, enabling forklift-free maneuvering.
Key features of this robust trolley include its sturdy construction with four durable wheels equipped with a stop function, as well as special guide rails that ensure compatibility with all SEDA tilt platforms and lifts. Thanks to its design, the trolley can be easily maneuvered by a single person. Additionally, the SEDA Vehicle Trolley can also be used as an independent workstation.
Technical Data
| Max. load capacity | up to 3,5 t |
| Trolley weight | 120 kg |
| Dimensions | 1,6 x 2 x 0,6 m |
Order Number
| A-527627 | SEDA Vehicle trolley Type A with serrated support surface |
| A-527626 | SEDA Vehicle trolley Type B with flat support surface |
| A-527974 | SEDA Vehicle trolley Type C for use with a two-post lift |
Downloads
Benefits
- Forklift-free maneuvering
- Easy positioning
- Stable wheel system with stop function
- For use on tilt lifts and hoists
- Separate workstation
- Special designs
- Also for new cars
Video
Additional information

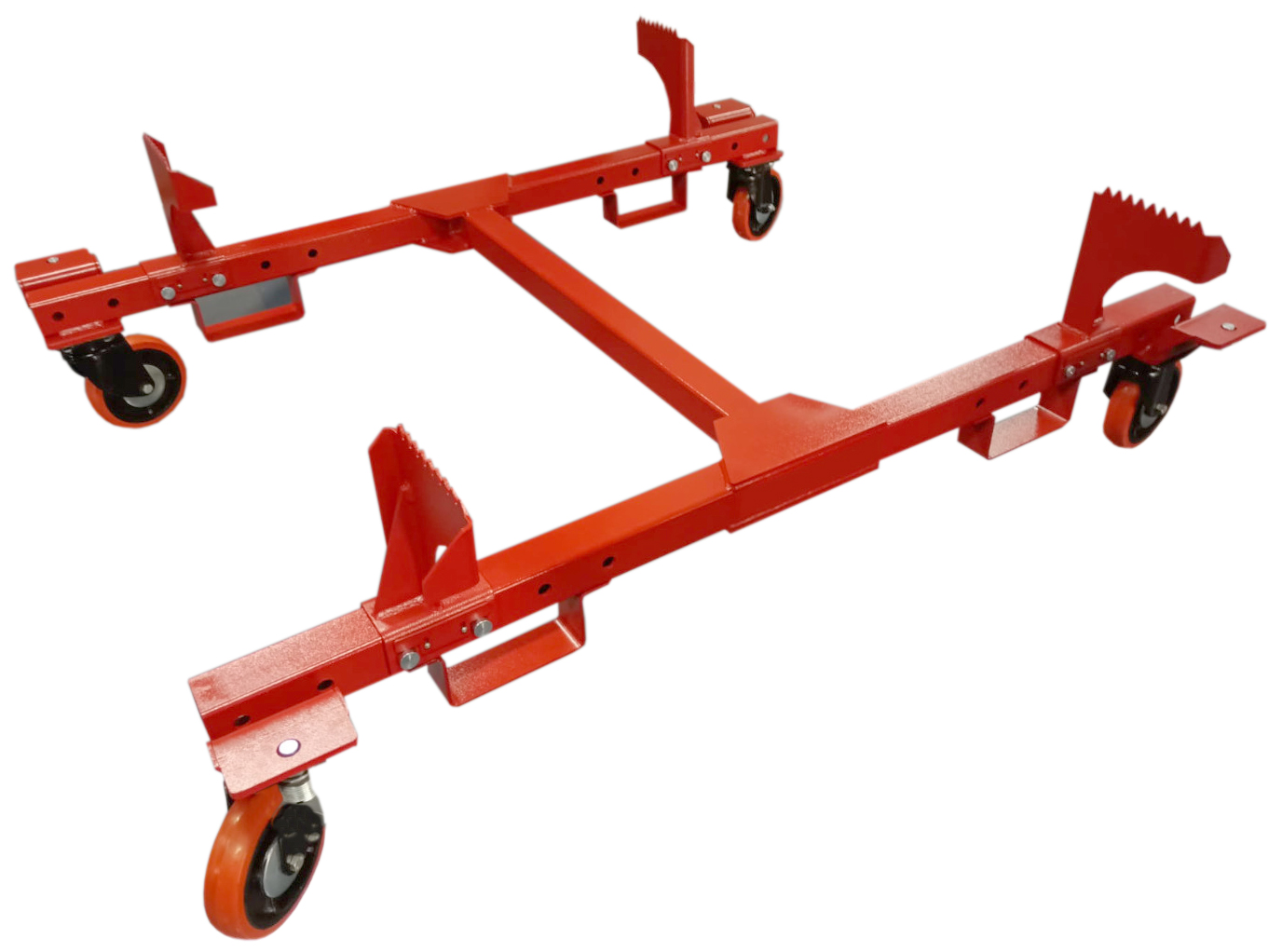

Vehicle trolley Type A with serrated support surface
for use with a tilt and single-post lift
- 4 standard supports
- 2 crossbars
- 2 swivel wheels and 2 fixed wheels
Vehicle trolley Type B with flat support surface
for use with a tilt and single-post lift (specifically designed for parts sellers to prevent damage)
- 2 crossbars
- 2 swivel wheels and 2 fixed wheels

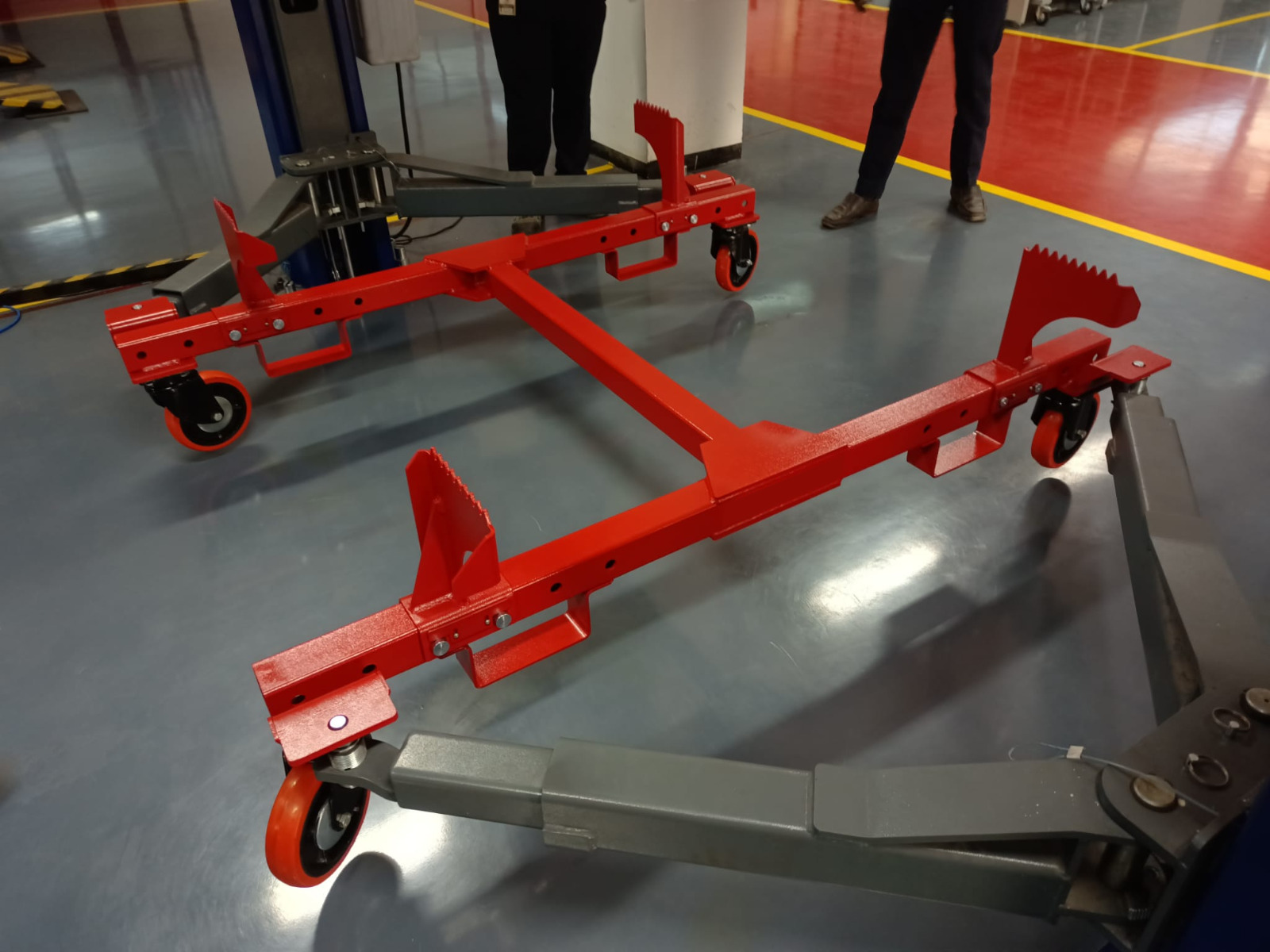

Vehicle trolley Type C
for use with a two-post lift
- 1 crossbar
- 4 swivel wheels
