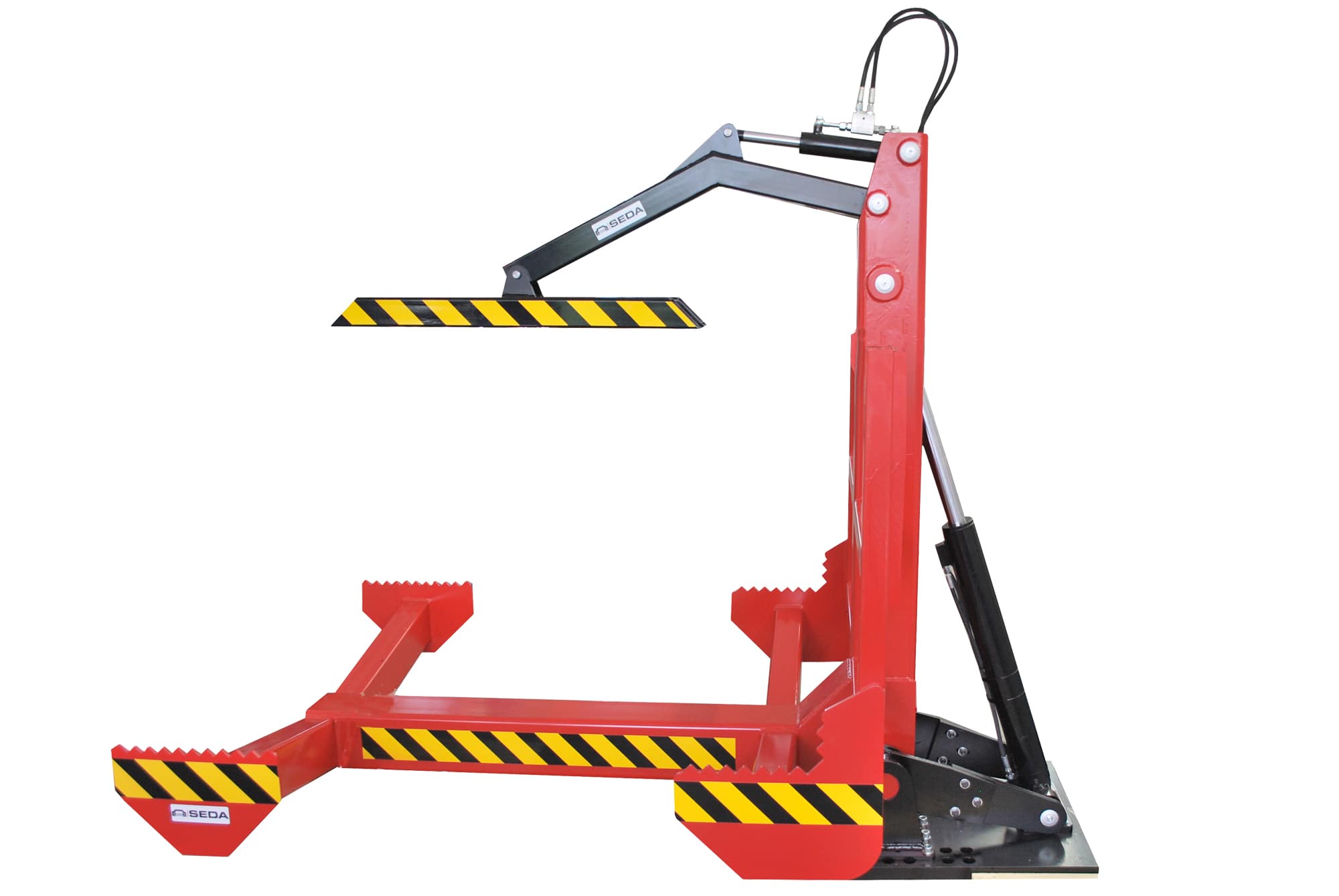

SEDA Tilting Platform
The SEDA vehicle dismantling system handles the movement of the vehicle, allowing the worker to remain in an ergonomic position.

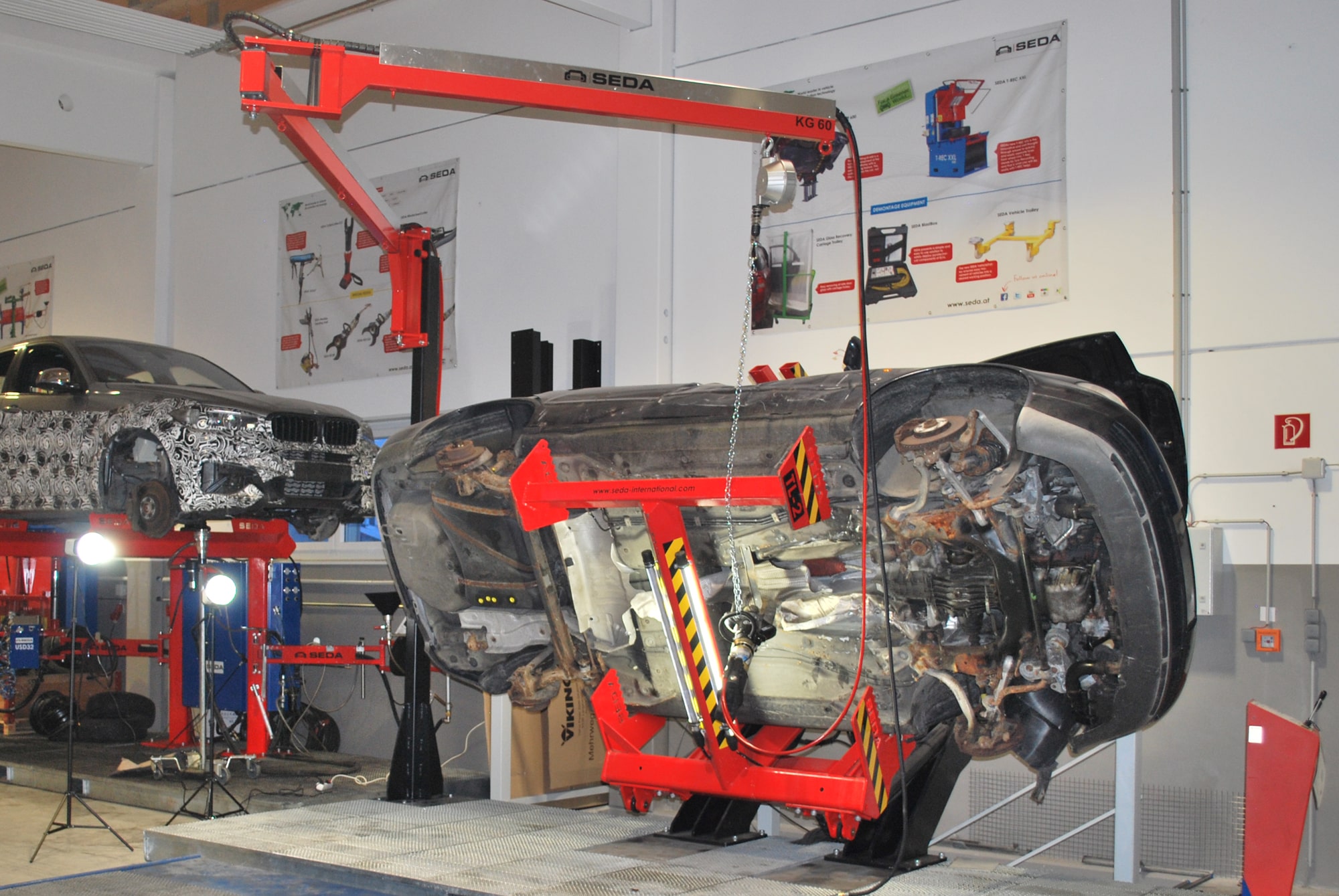

The vehicle is first positioned on the tilting platform and secured with the lock down safety system. It can then be tilted up to 90°, significantly simplifying and improving comfort when working on the vehicle‘s underside.

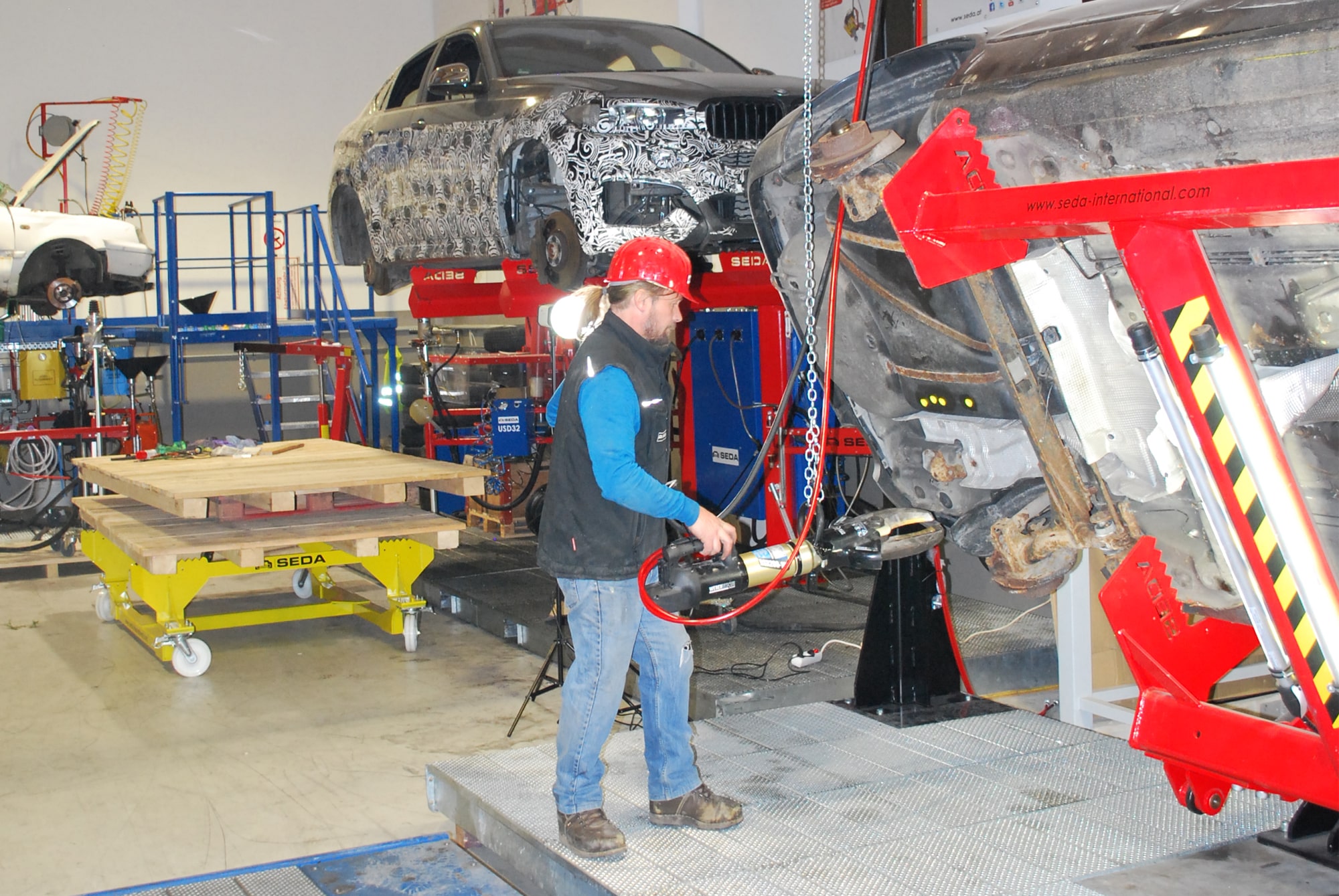

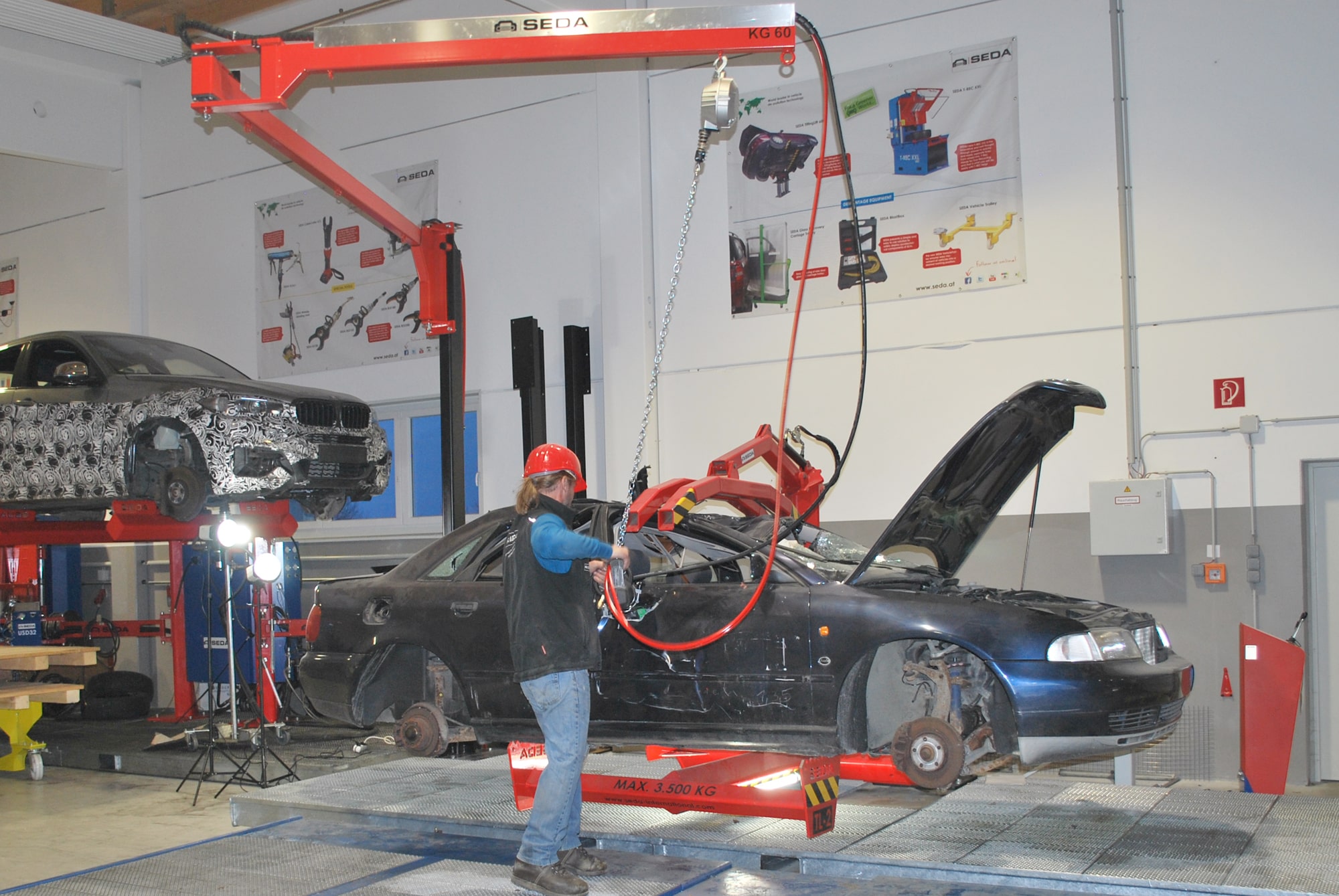

With the optional mobile platform and recycling tools on the optional swivel arm, many additional applications are possible for flexible and efficient vehicle dismantling as shown above.
Bookmark
Technical Data
| Control system | hydraulic |
| Load capacity | 3.500 kg |
| Power output | 1,5 kW |
| Power supply | 400 V |
| Oil volume | 25 l |
| Swing arm radius | 6 m (2,5 / 3,5 m) |
| Tilting platform dimensions | 1,5 x 2,6 x 2,5 m |
| Platform dimensions | 5,8 x 2,3 x 0,3 m |
| Space requirements | 6 x 6 x 2,9 m |
Order Number
| A-527493-H | SEDA tilting platform |
| Optional | |
| C-527496 | SEDA platform |
| A-527213 | SEDA collection trays (Type B) |
| C-527497-T18 | SEDA dismantling arm (without Tools) |
Downloads
Benefits
- Hydraulc control system
- For simple and ergonomic work on vehicle undersides
- Additional recycling tools on the optional swivel arm
