SEDA TPF5

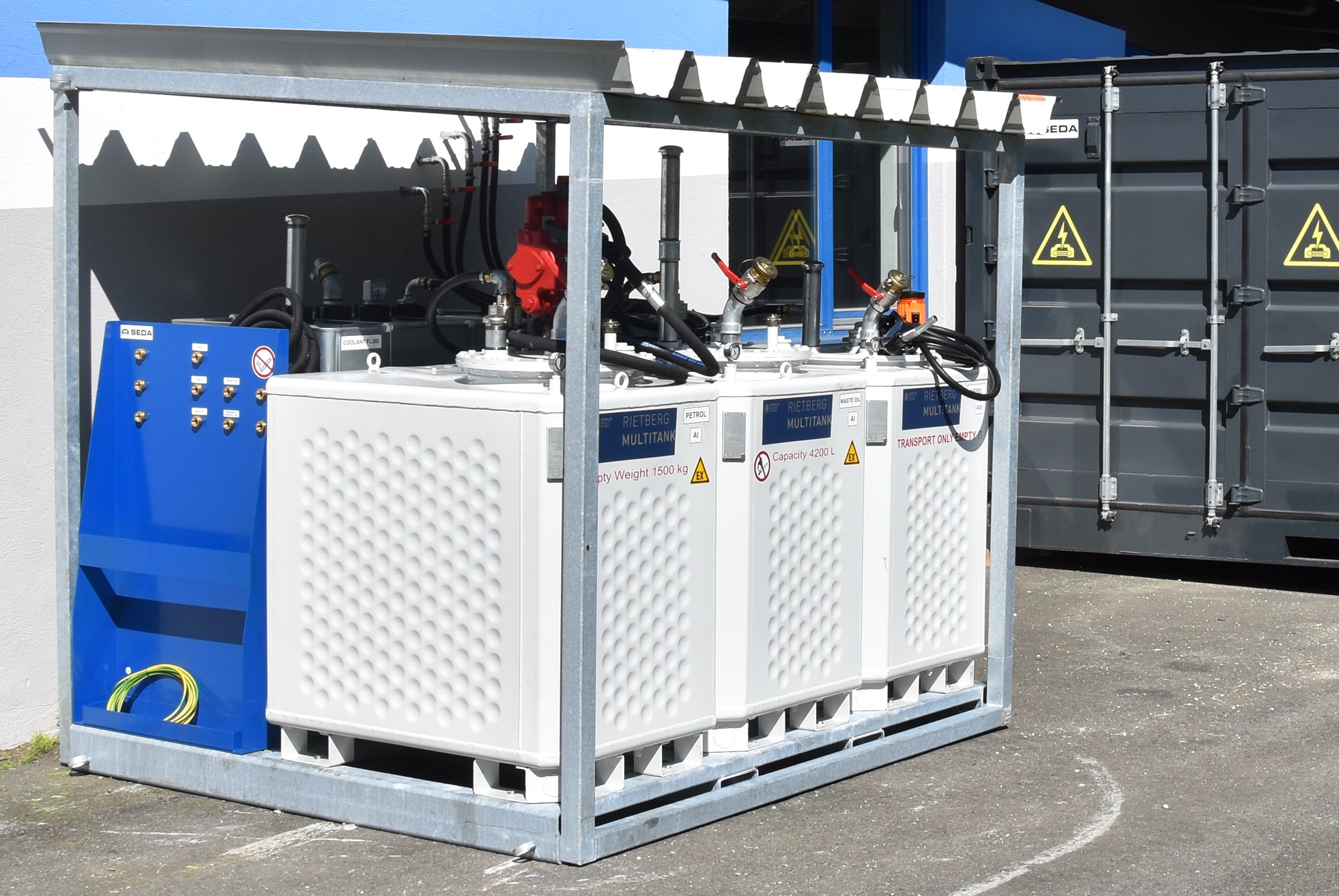

The SEDA TPF5 (Tank Platform) is equipped with five tanks, offering a comprehensive solution for storing operating fluids from end-of-life vehicles.
Two 900-liter AI tanks are designated for storing gasoline and used oil (also suitable for contaminated substances), while a 900-liter AIII tank is available for diesel. Additionally, two 750-liter AIII tanks are provided for windshield washer fluid and coolant. These tanks are arranged on a platform specifically designed for vehicle fluid drainage operations.
Technical Data
| Gasoline | AI Tank 900 l |
| Diesel | AIII Tank 900 l |
| Used oil | AI Tank 900 l |
| Windshield washer fluid | AIII Tank 750 l |
| Coolant | AIII Tank 750 l |
| Dimensions | 2,5 x 2 x 2,1 m |
| Empty weight | 1.500 kg |
| Max. Weight | 5.700 kg |
| Capacity | 4.200 l |
All tanks are equipped with a level indicator, vent pipe and tank truck connections. Tanks for diesel and gasoline include an electric pump and fuel nozzle
Order Number
| A-528195 | TPF5 Tank platform with storage tanks for gasoline, diesel, used oil, coolant, and windshield washer fluid |
| Recommended system | |
| A-527800 | SEDA MDS6 Container including a depollution system, vehicle carrier and accessories |
| A-528194 | Mounting kit for MDS6 and TPF5 |
Downloads
Benefits
- Mobile use enabled by an integrated forklift attachment
- Compatible with all SEDA systems
- All connections centralized in one location
- Equipped with pumps, gauges and dispensing nozzles
- No additional tank line installation required
Video
Additional Information

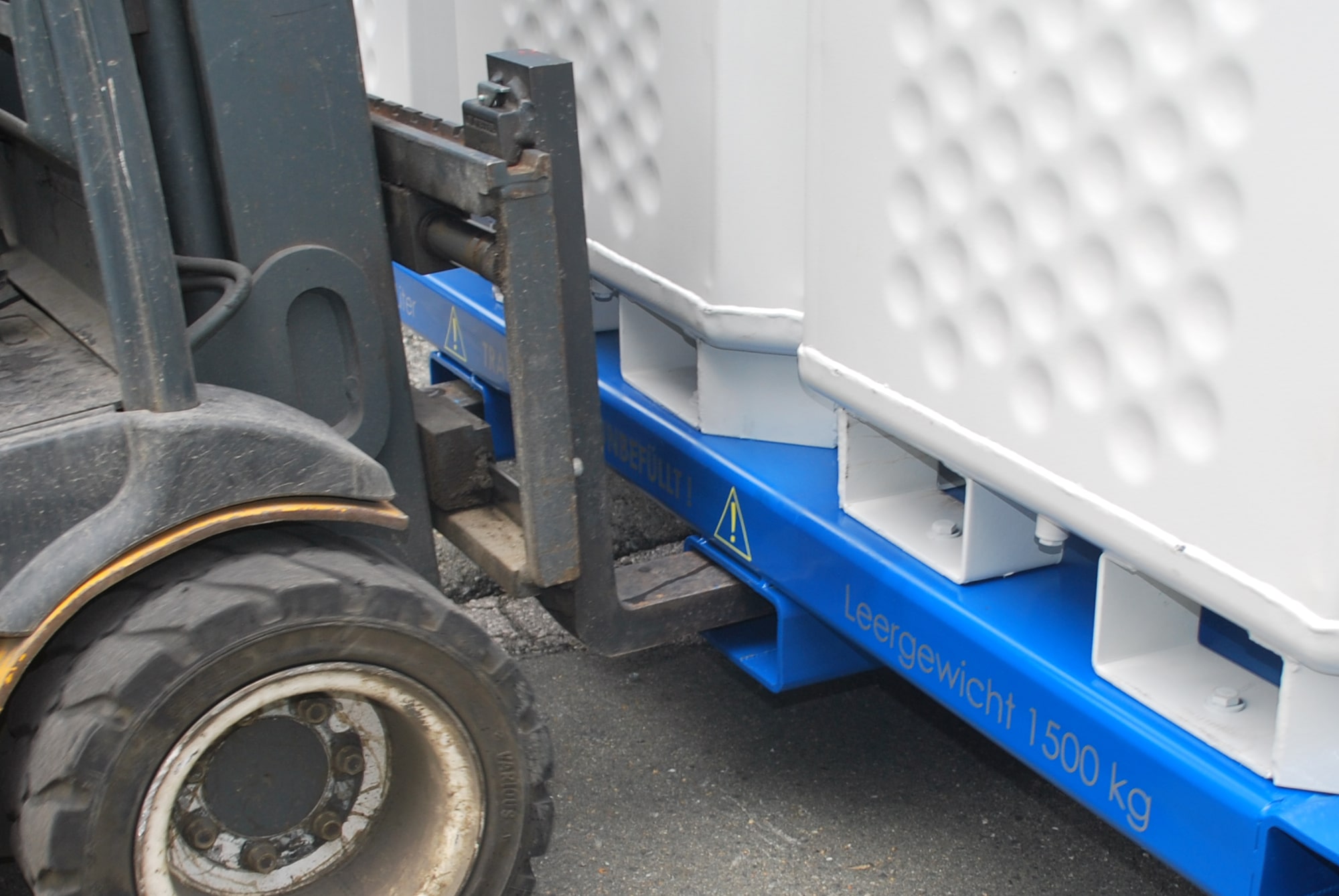

The key advantage of this system lies in its mobility: a specially designed forklift attachment enables the platform to be effortlessly relocated to different sites. With this SEDA solution, the storage of fluids becomes efficient and professional.

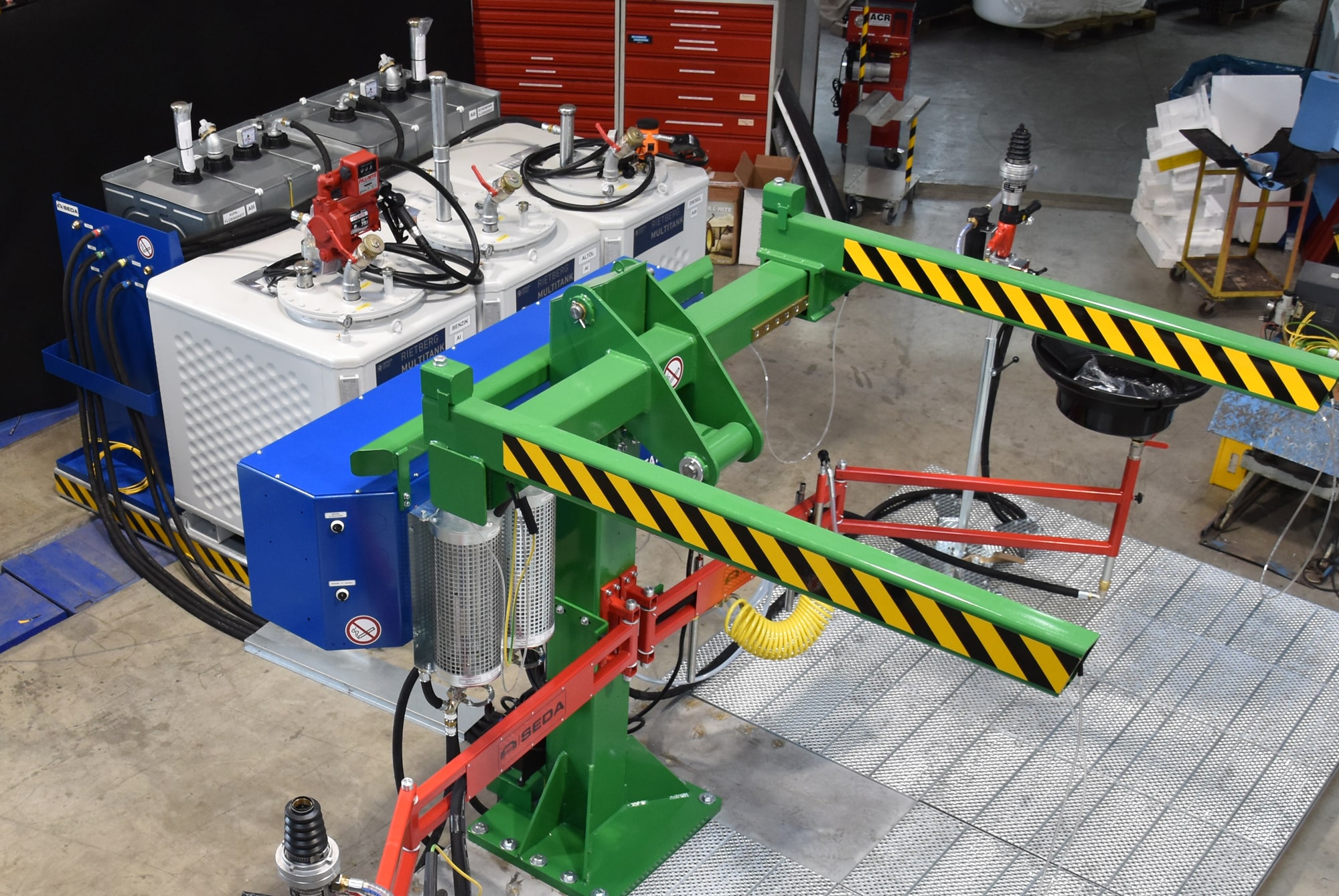

The tank platform was developed in combination with the SEDA MDS6 container, enabling particularly flexible usage. For instance, the platform can be stored directly inside the container for transport. A specially designed fixture secures the platform and its tanks during transport within the container, ensuring everything remains stable and safely stowed.
