Shock absorber draining device
SEDA SOG2
Up to 1.5 liters of waste oil can be contained in four shock absorbers.

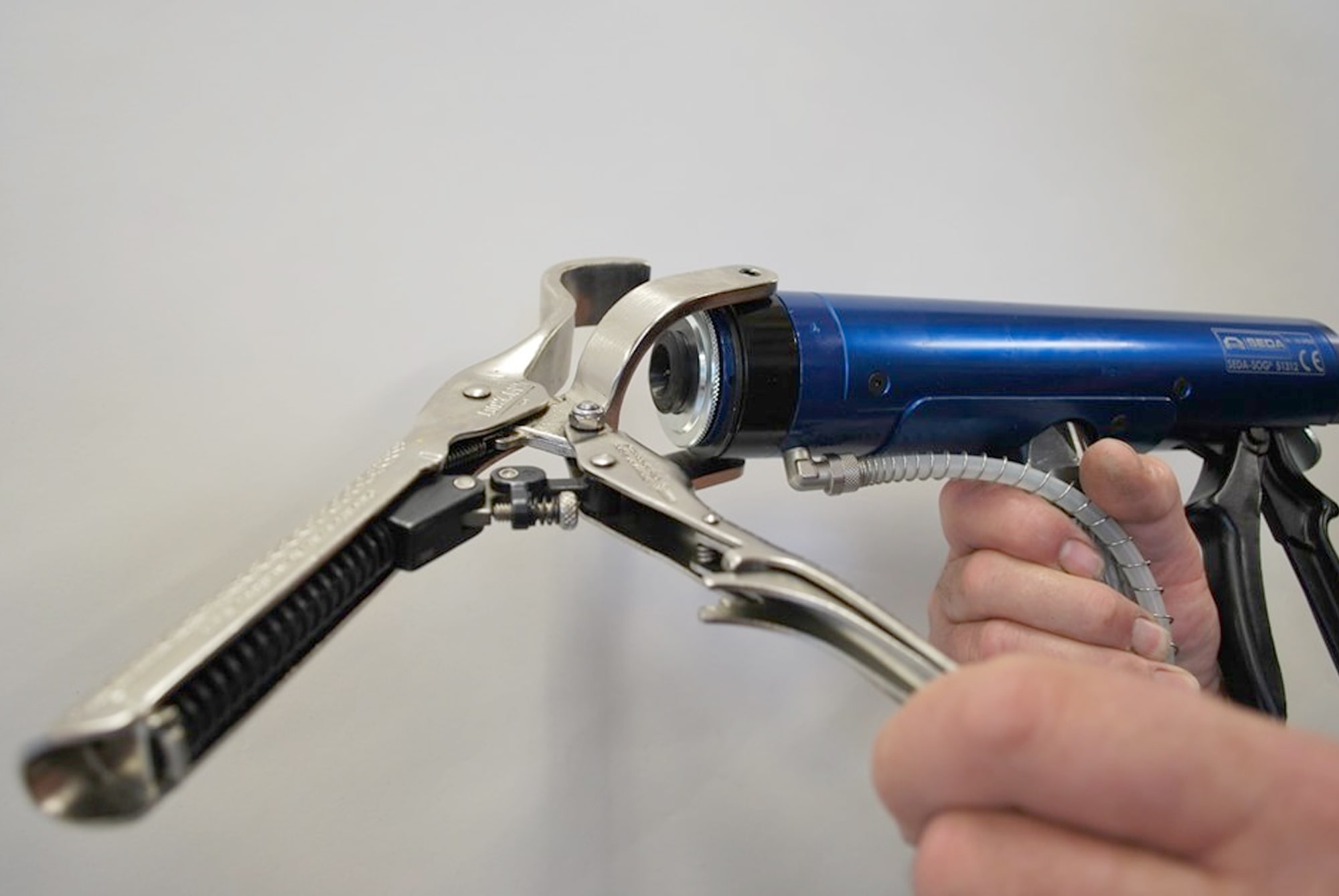

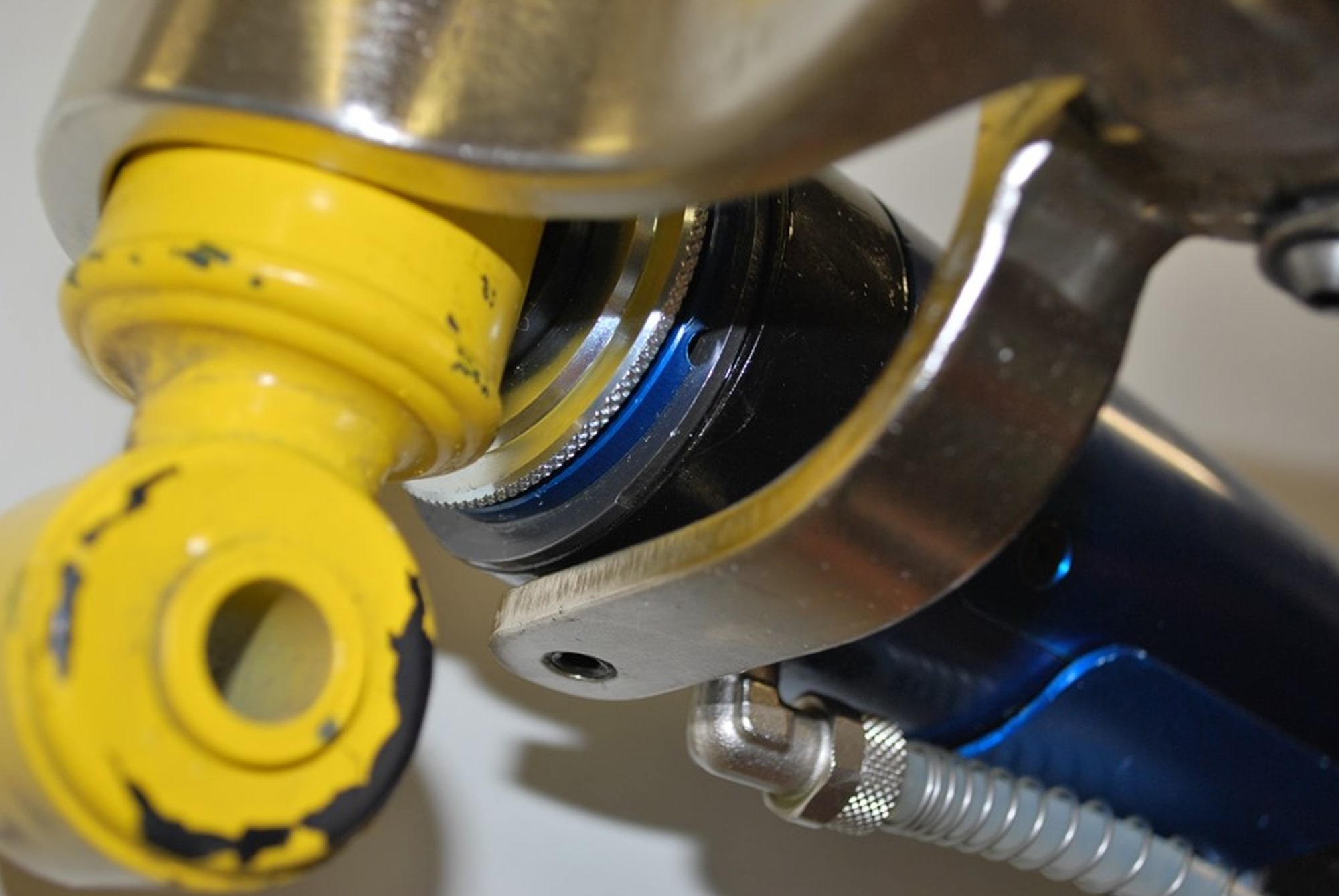

The device is securely fixed to the shock absorber using a specially designed grip clamp. The drilling process is powered by a precisely controlled compressed air supply, while the oil is efficiently extracted using a vacuum system. The integrated residual oil extraction hose ensures that any remaining oil is completely removed through the drilled hole in the shock absorber, enabling a clean and effective fluid recovery.
Bookmark
Removable cap for cleaning the drill shavings chamber
Adjustable grip clamp automatically adapts to the specific shock absorber
Release button to retract the drill from the drilled hole
Low-wear feed
mechanism for
extended durability
mechanism for
extended durability
Release button to free the drill in case of blockage
Simple on/off switch for the drill
mechanism
mechanism
Visual section for monitoring oil flow
Technische daten
| Compressed Air | 6-8 bar | |
| Weight | 4 kg | |
| Note: | Shock absorber wall thickness up to a maximum of 1.5mm! |
Bestellnummer
| A-51312 | SEDA SOG² |
| Required device: | |

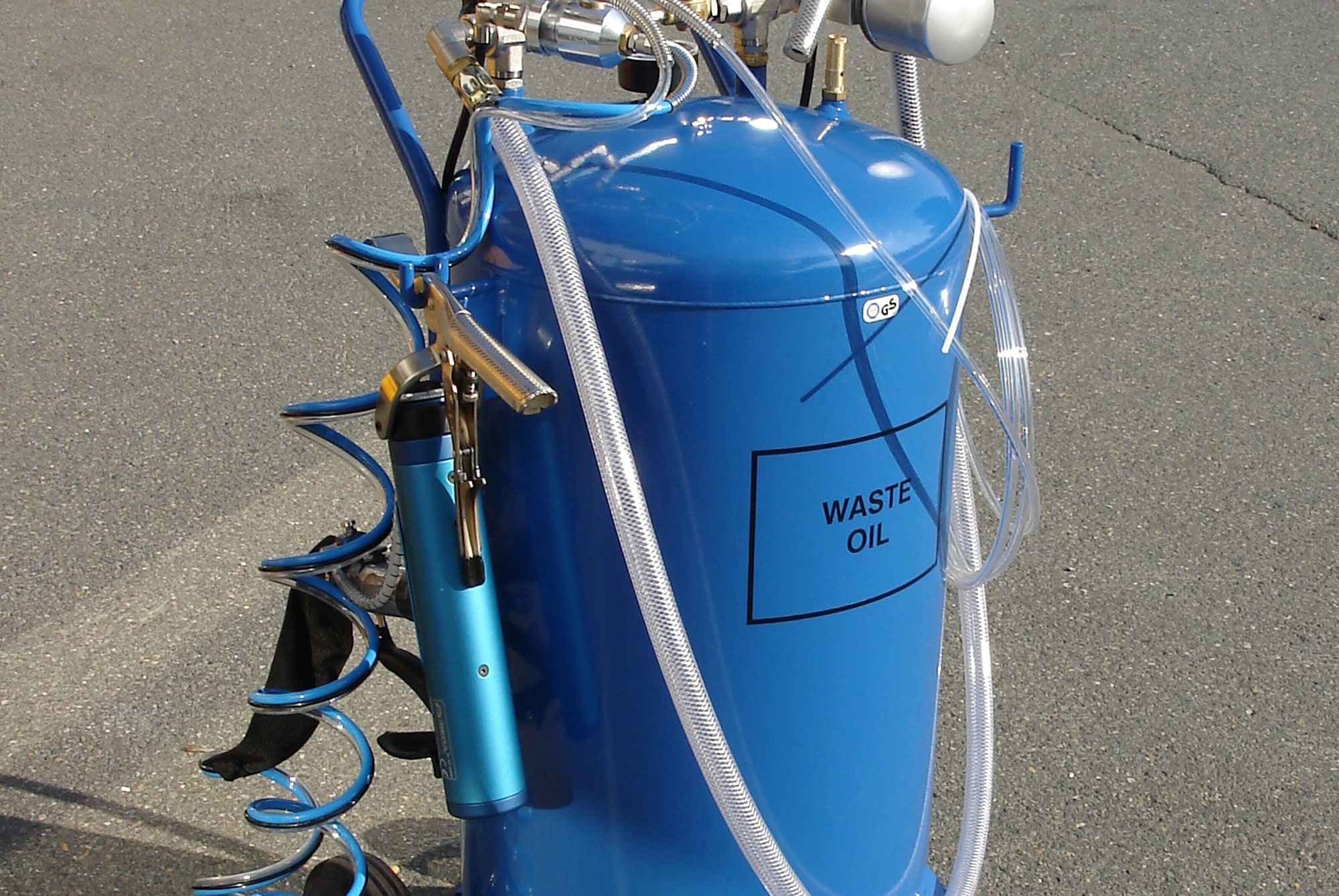

| A-51311 | SEDA Waste oil extractor |
| C-51350 | SEDA Waste oil pump |
Downloads
Benefits
- Pneumatic shock absorber drilling device
- Easy operation
- Includes connection fittings
- Draining possible provided there is sufficient space (wheel removed)
Video
