SEDA MDS9 Container JumboLine
The MDS9 JumboLine container offers a state-of-the-art, comprehensive solution for the mobile decommissioning of end-of-life vehicles weighing up to 4 tons (trucks, minibuses, vans, etc.).

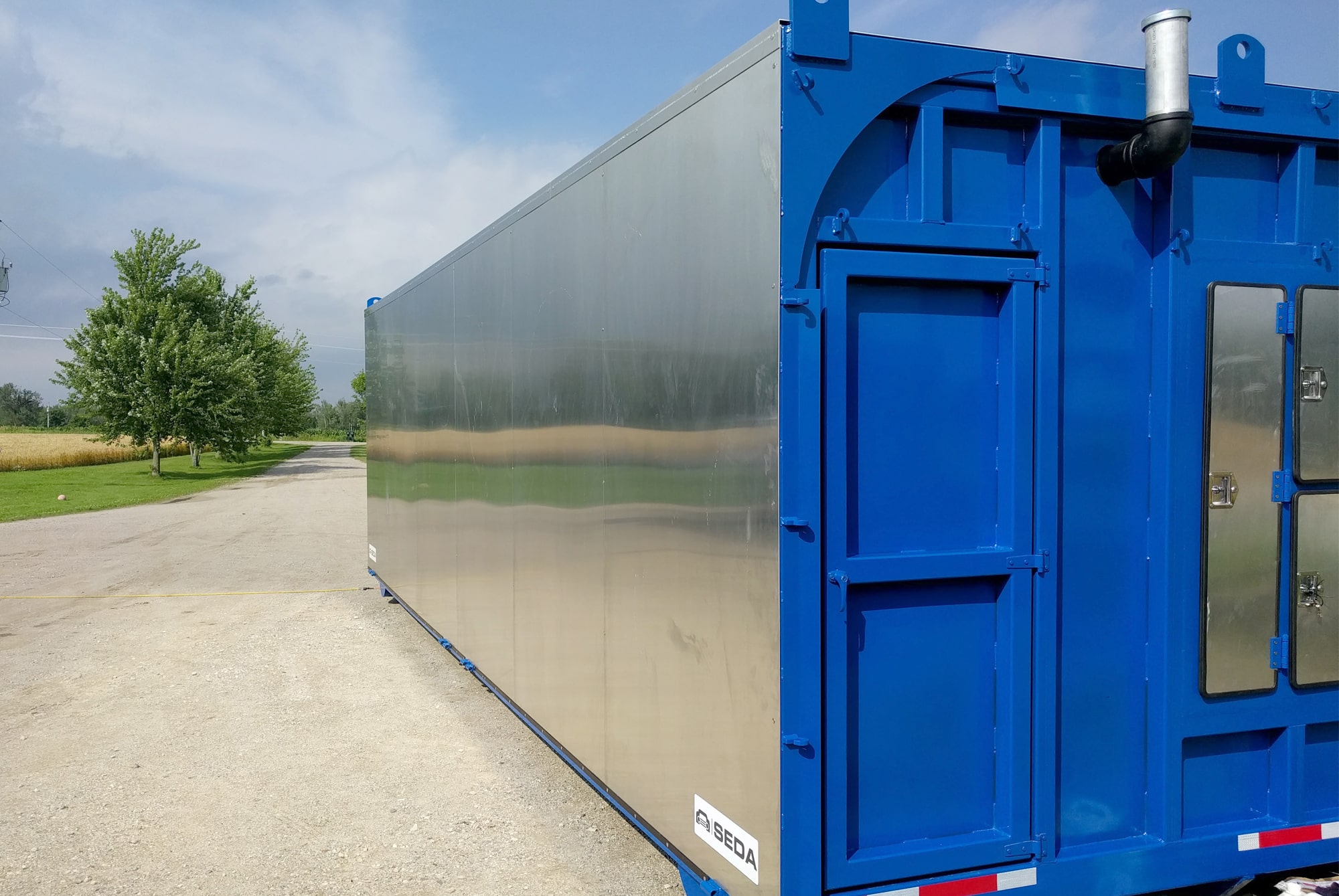

Designed as a roll-on roll-off container, it is equipped with a fully integrated fluid drainage system. The container‘s lid can be opened and serves as a roof, providing effective protection against adverse weather.
Technical Data
| Compressed Air | 8,5 bar – 1.350 l/min |
| Load capacity | 4.000 kg |
| Closed size | 8,5 x 2,4 x 2,4 m |
| Open size | 8,5 x 2,4 x 4,8 m |
| Fluids | Gasoline / Diesel Used Oil Brake Fluid Coolant Windshield Washer Fluid |
Order Number
| C-50154 | SEDA MDS9 Container JumboLine |
| Optional accessories | |
| A-528195 | TPF5 Tank platform with storage tanks for gasoline, diesel, used oil, windshield washer fluid, and coolant |
Downloads
Benefits
- Robust and high-performance system for large vehicles up to 4 tons
- Ready for immediate use and easy to maintain
- Spacious working area with additional onboard work aids
- All connections are pre-installed
Video
Additional Information

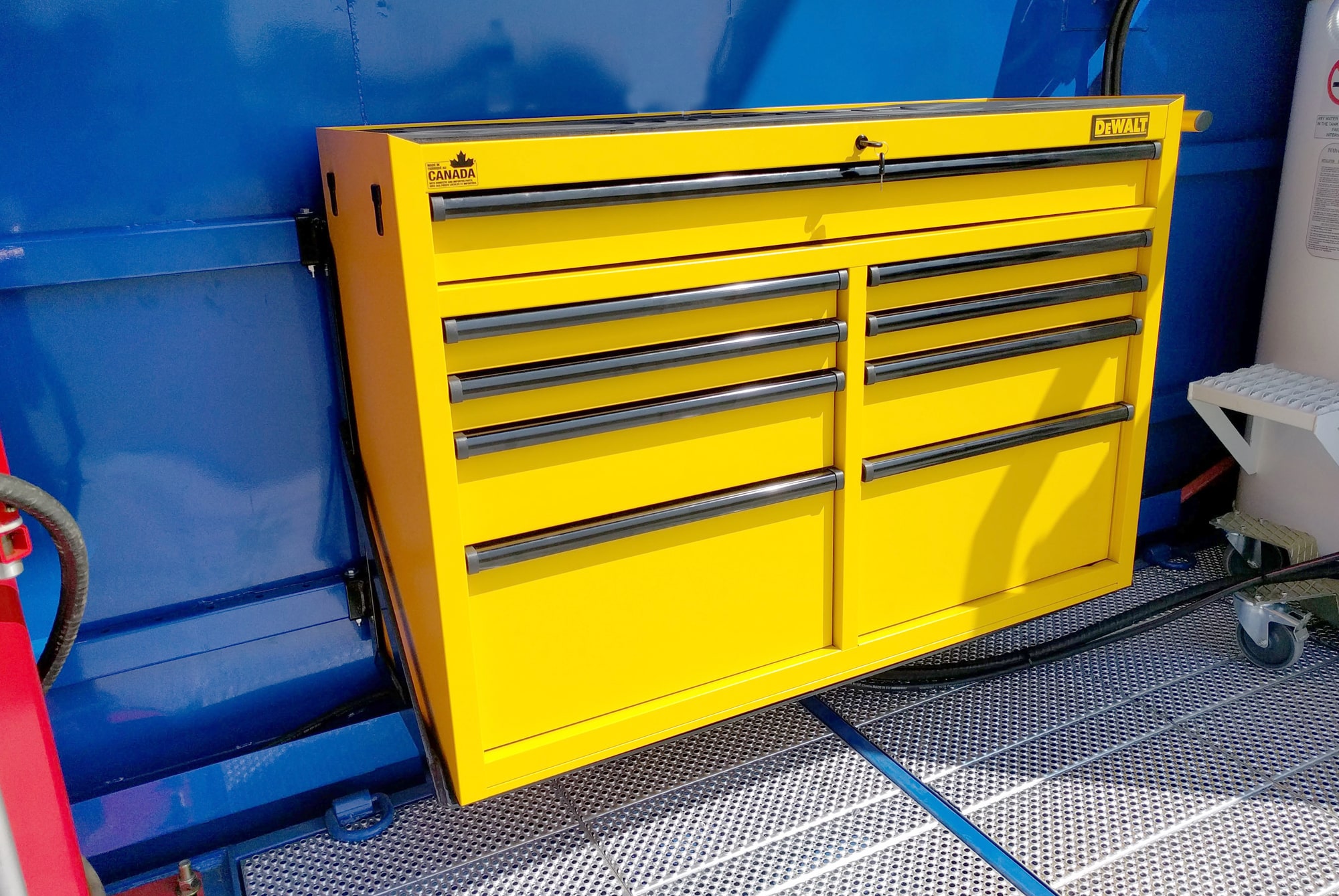

Inside the container, a vehicle carrier with a load capacity of 4 tons and floor pans compliant with WHG §19l are securely installed. Additionally, the container includes essential work aids such as a workbench and a toolbox.
The fluid drainage system features pumps for brake fluid, gasoline, diesel, waste oil, coolant, and windshield washerfluid, all housed in a separate pump cabinet with pressure gauges and controls. The system is further equipped with a fuel tank drilling device, fuel quality inspection containers, swivelarms for the tank drilling device and waste oil funnel, hose reels (for coolant, windshield washerfluid, and compressed air), and additional accessories.

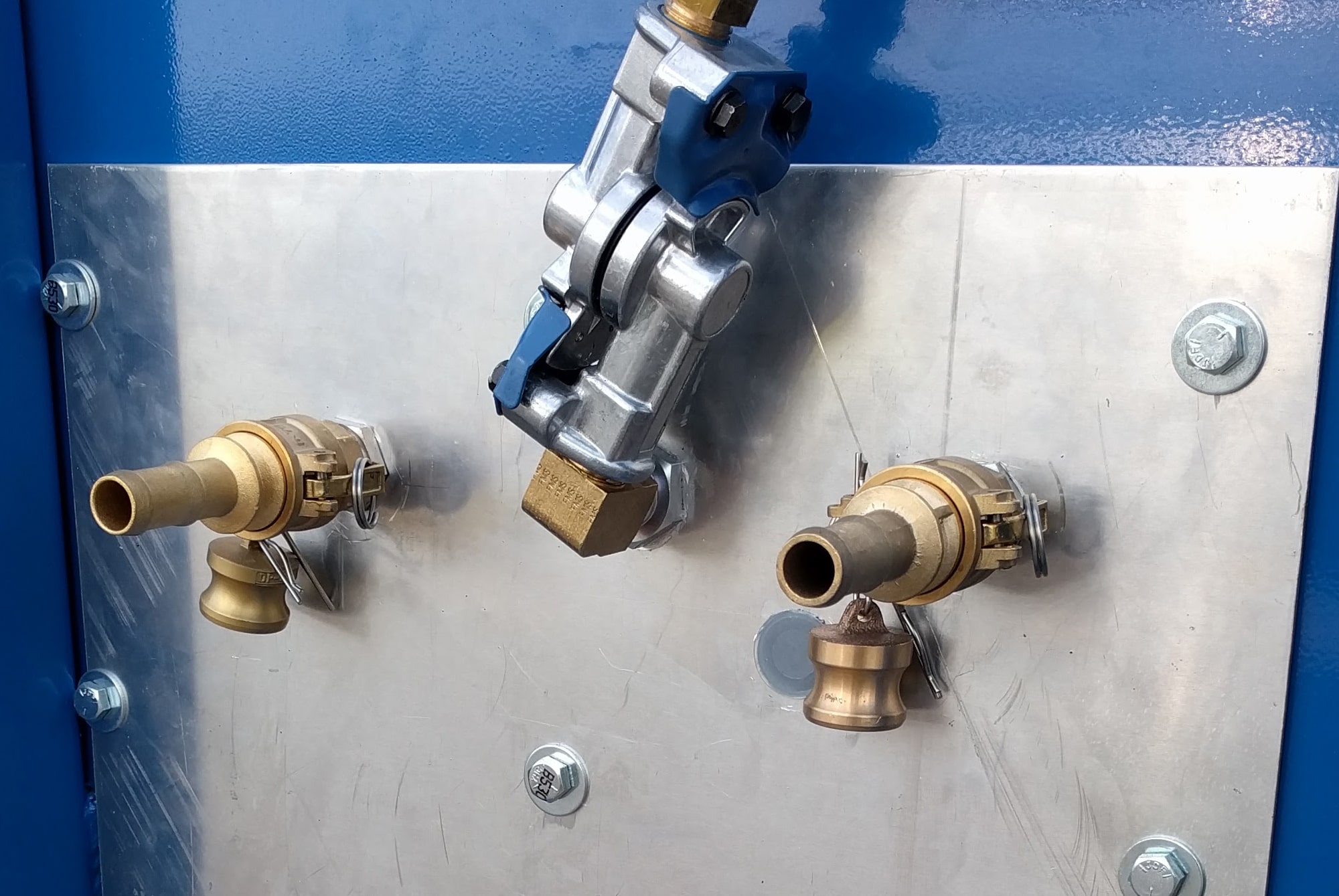

All necessary hoses and quick couplings are pre-installed in the container, making the system immediately ready for use. Complementing the MDS9 container, SEDA offers an optional mobile storage tank platform equipped with five high-quality tanks for operating fluids (gasoline, diesel, waste oil, coolant, and windshield washer fluid).
For standalone operation, a platform with a generator and compressor is also available, ensuring independent power and compressed air supply.
