Mobile End-of-Life Vehicle Depollution System
SEDA MDS8 Container DrainLift
The SEDA MDS8 Container DrainLift combines an electro-hydraulic or pneumatic single-column lift with SEDA‘s proven depollution system in a practical roll-on roll-off container.
This combination also allows for straightforward dismantling tasks to be performed directly inside the container.
Bookmark
Roof for weather protectioni
Standardized roll-off container ensures mobility

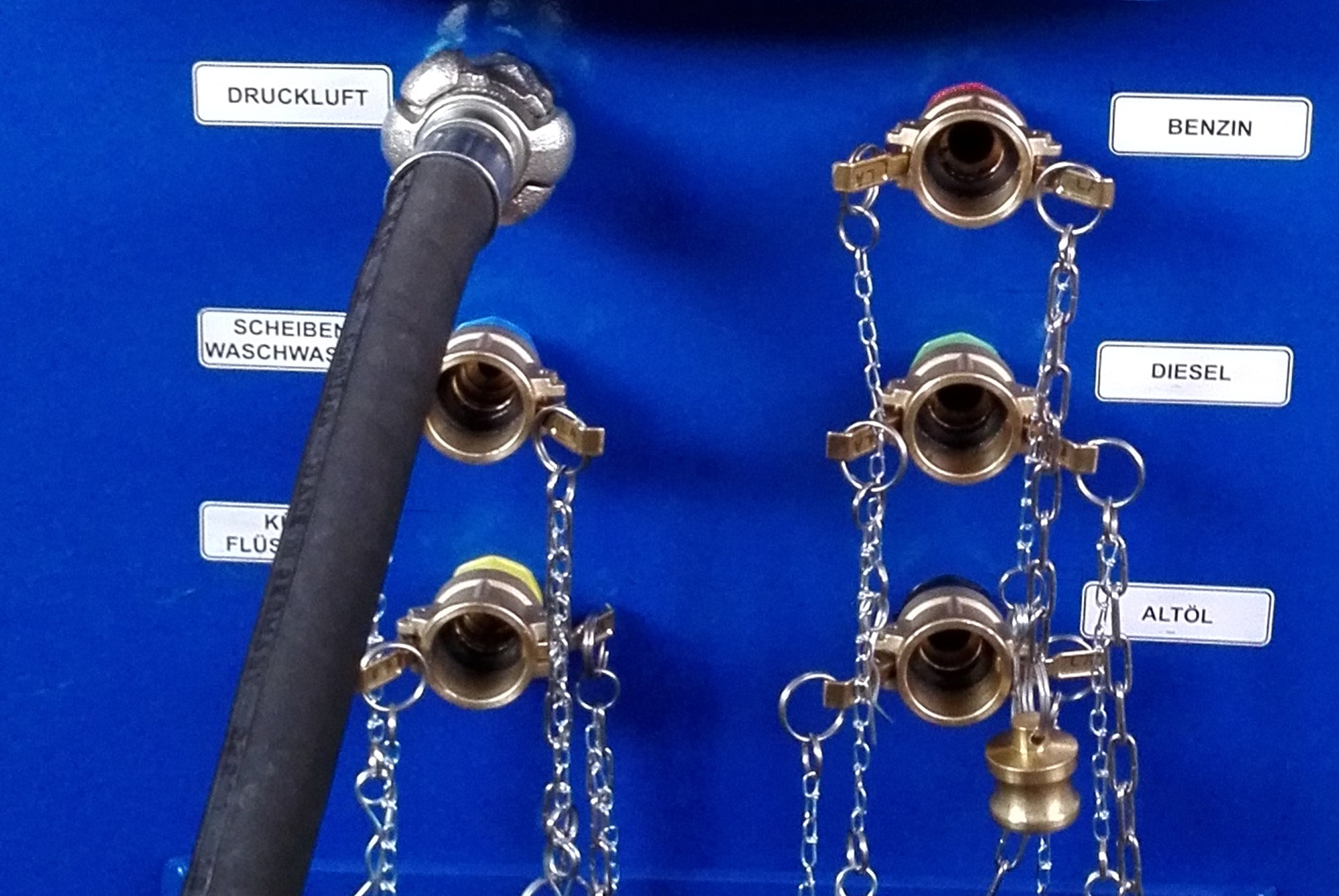

Pre-installed tank lines and connections
Spacious working area including a workbench and tolls
Powerful double diaphragm pumps housed in space-saving pump enclosures
Integrated collection trays eliminate the need for a liquid-tight floor
Robust single-column lift with a 3.5-ton load capacity
Technical Data
| Litfting height | up to 1.800mm |
| Total height | 2.410 mm |
| Lifting time | approx. 30 s |
| Load capacity | 4.000 kg |
| Power | 3 kW |
| Power supply | 3 Ph/400 V/50 Hz |
| Open size | 6,5 x 2,5 x 4,8 m |
| Compressed Air | 8 bar – 1.210 l/min |
| Fluids | Gasoline / Diesel Used Oil Brake Fluid Coolant Windshield Washer Fluid |
Order Number
| A-51127 | SEDA MDS8 Container DrainLift including quality control, a tank drilling device on a swivel arm, and dual used-oil funnels |
| Optional accessories | |
| A-528202 | Hydraulics for container opening |

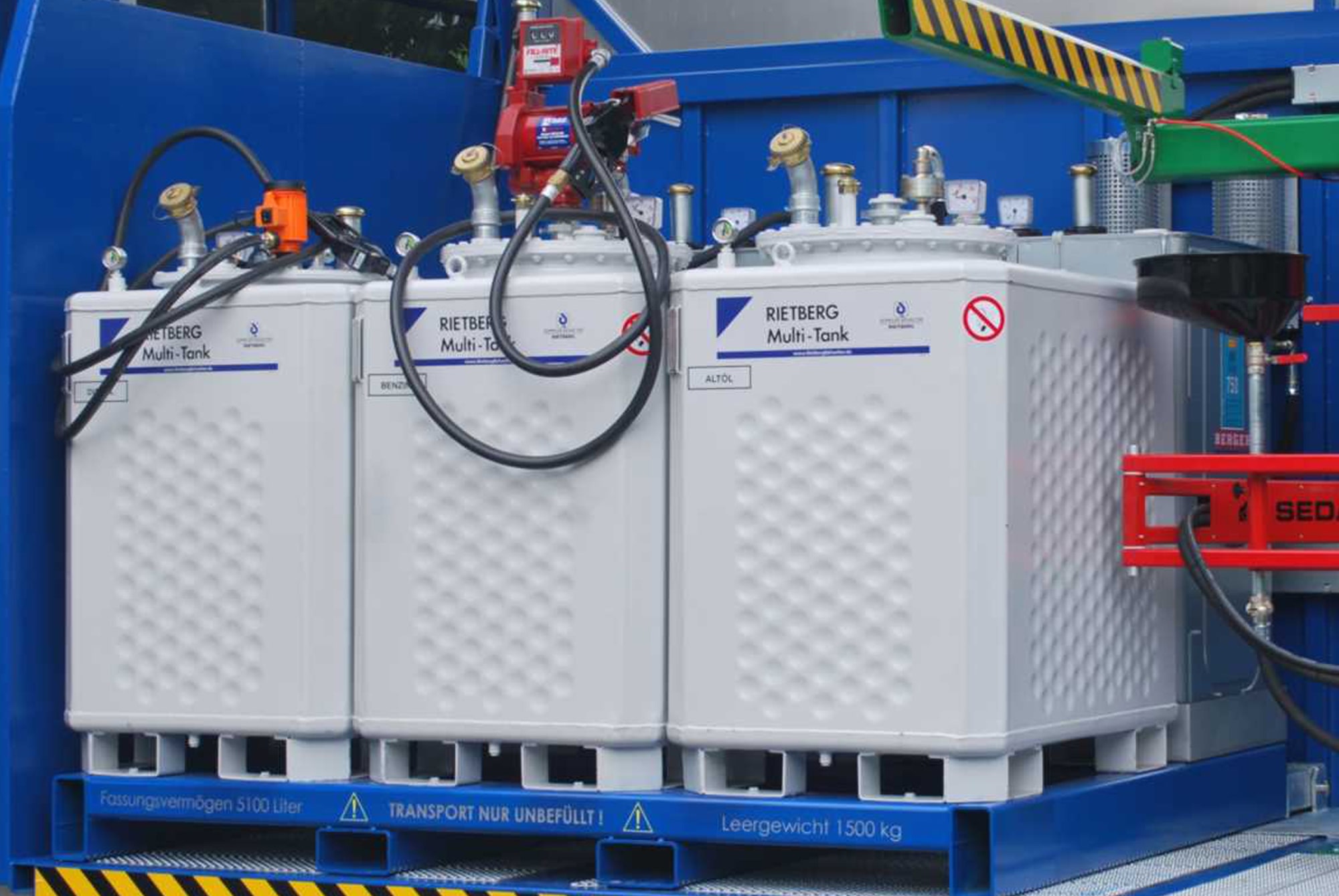

| A-528195 | TPF5 Tank platform with storage tanks for gasoline, diesel, used oil, windshield washer fluid, and coolant |
Downloads
Benefits
- Depollution in a mobile roll-on roll-off container

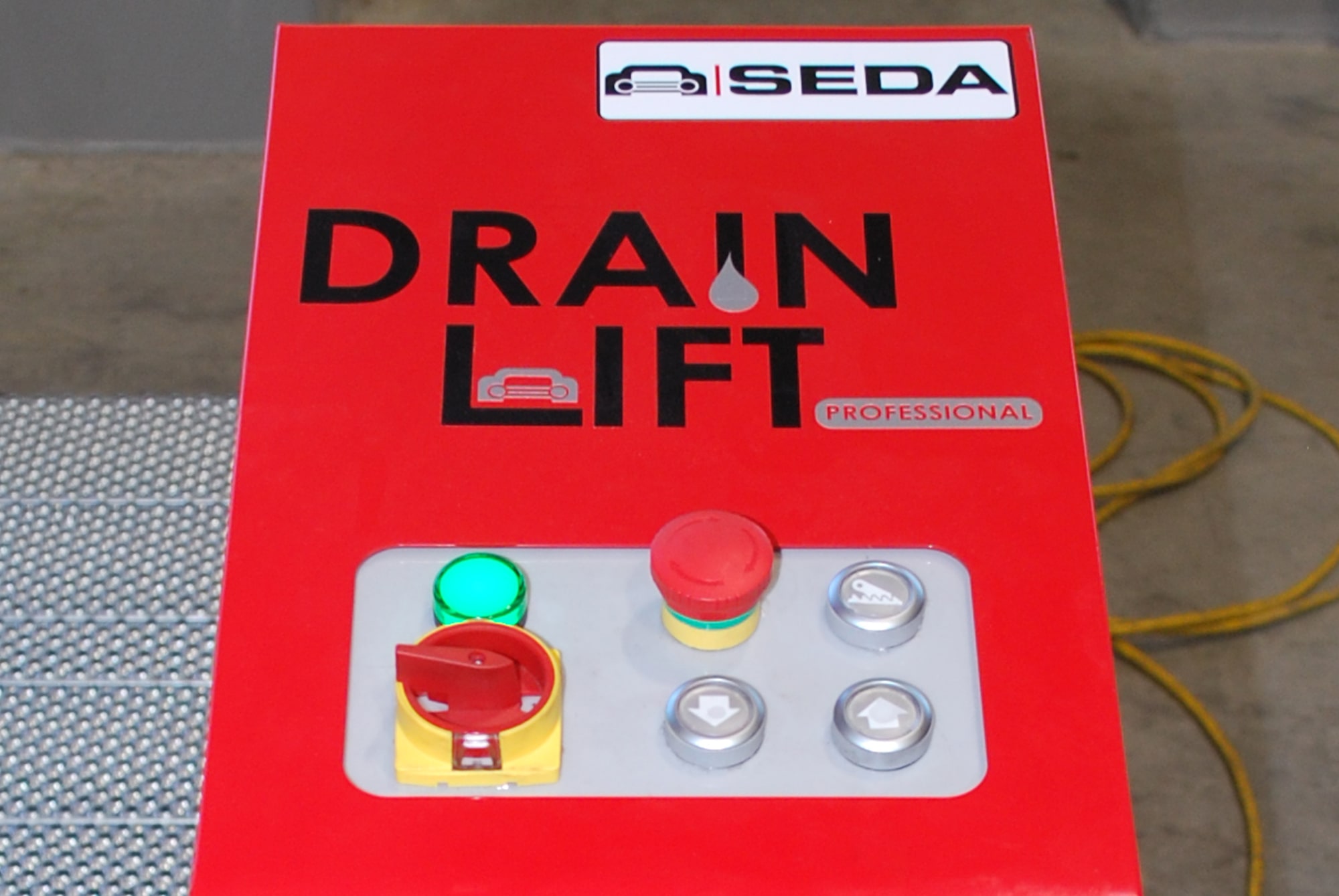

- Electro-hydraulic/pneumatic control system (Ex-certified)
- Vehicle dismantling possible
- Stable and well designed
Video
