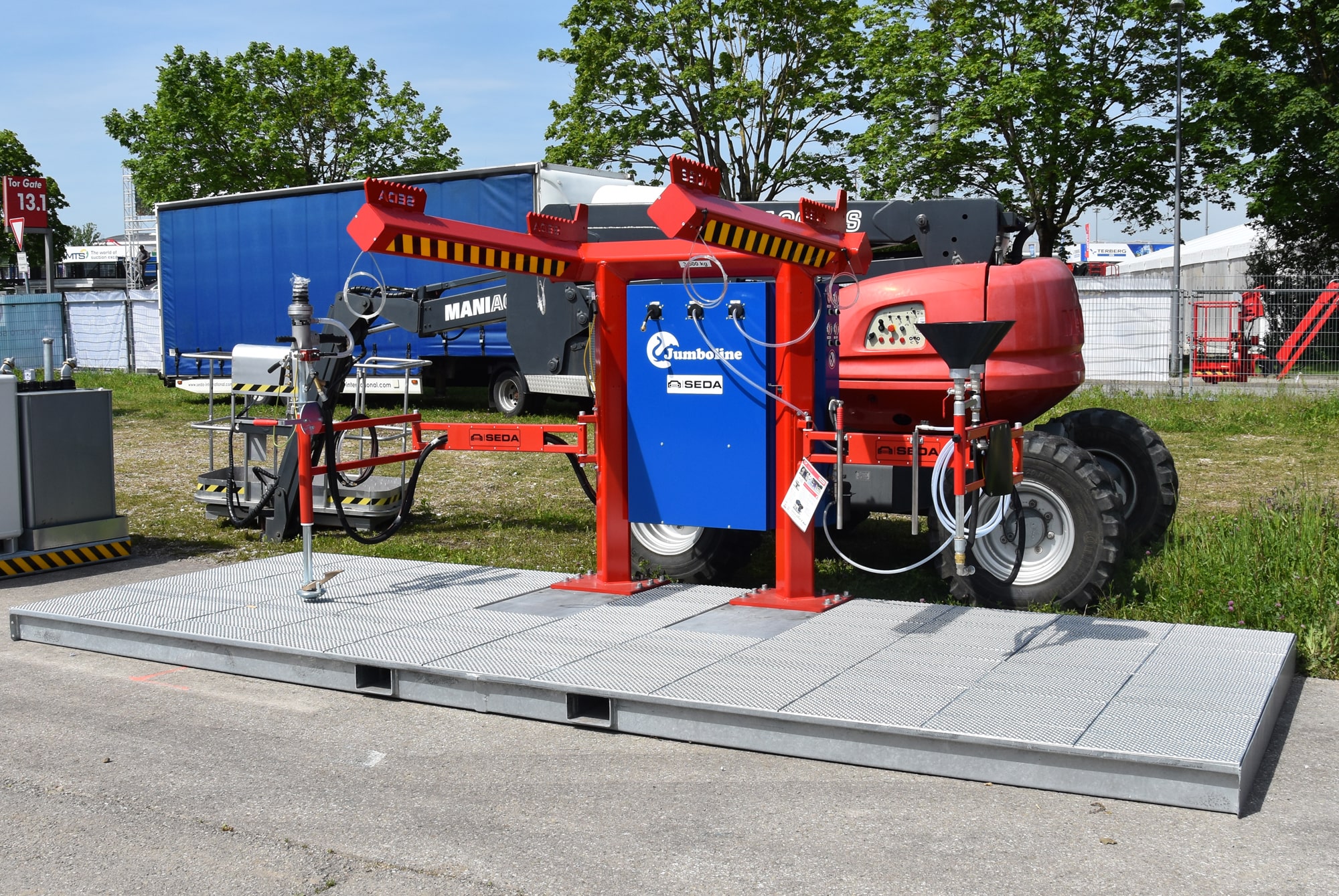

SEDA MDS2 Platform JumboLine
The Jumboline platform is built for those large and heavier vehicles making light work of the depollution process.
Technical Data
| Compressed Air | 8 bar – 1.210 l/min |
| Fluids | Gasoline / Diesel Used Oil Brake Fluid Coolant Windshield Washer Fluid |
| Size | 6,5 x 2,5 x 2,4 m |
| Weight | 4.000 kg |
Order Number
| A-526197 | SEDA MDS2 Platform JumboLine |
| Optional accessories | |
| N-527621 | Platform extension (5.008 x 561 x 173 mm) |
| N-528195 | TPF5 Tank platform with storage tanks for gasoline, diesel, used oil, windshield washer fluid, and coolant |
Downloads
Benefits
- Complete mobile solution for depollution
- High safety standards with CE and ATEX certification
- Integrated pumps
- Permanently welded galvanized platform
- Galvanized safety grating panels
Video
Additional information

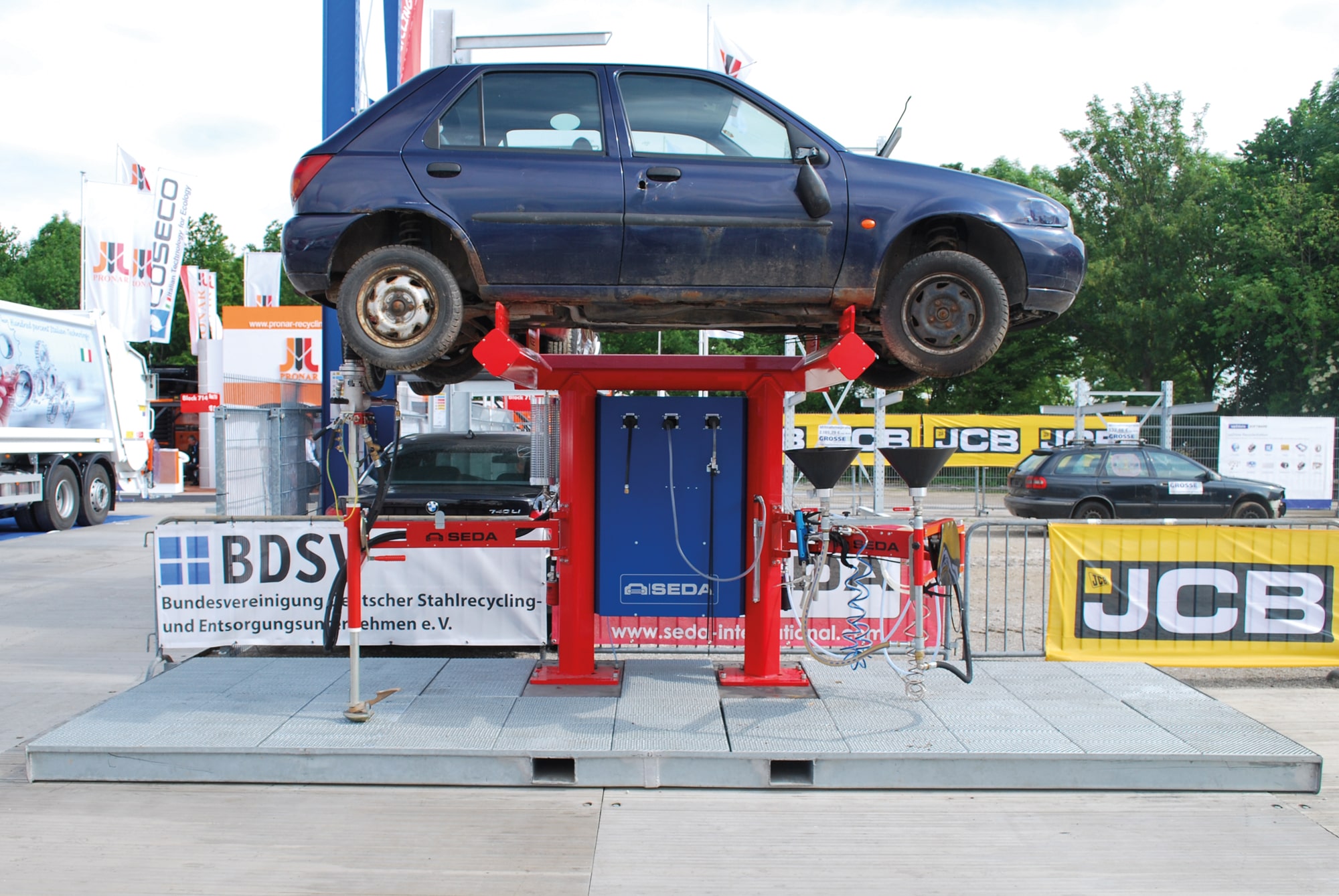

A Jumboline vehicle carrier is installed on a galvanized platform, providing a stable and corrosion-resistant base. Visual inspection of the fuel quality is done using our fuel quality control unit. Additionally, fuel and oil filters are integrated in our system to ensure clean and efficient fluid processing. The tank drilling machine is mounted on a swing arm and facilitates easy operation with a gas-assisted height adjustment. The other swing arm is equipped with pneumatically height adjustable dual oil funnels for draining engine and transmission oil simultaneously. The system also includes a compressed air connection with an 8-meter hose reel for flexible usage. A coolant connection with a 7-meter hose reel and a coolant piercing lance, as well as a windshield washer connection with a 7-meter hose reel and a suction lance set, further enhancing its functionality.

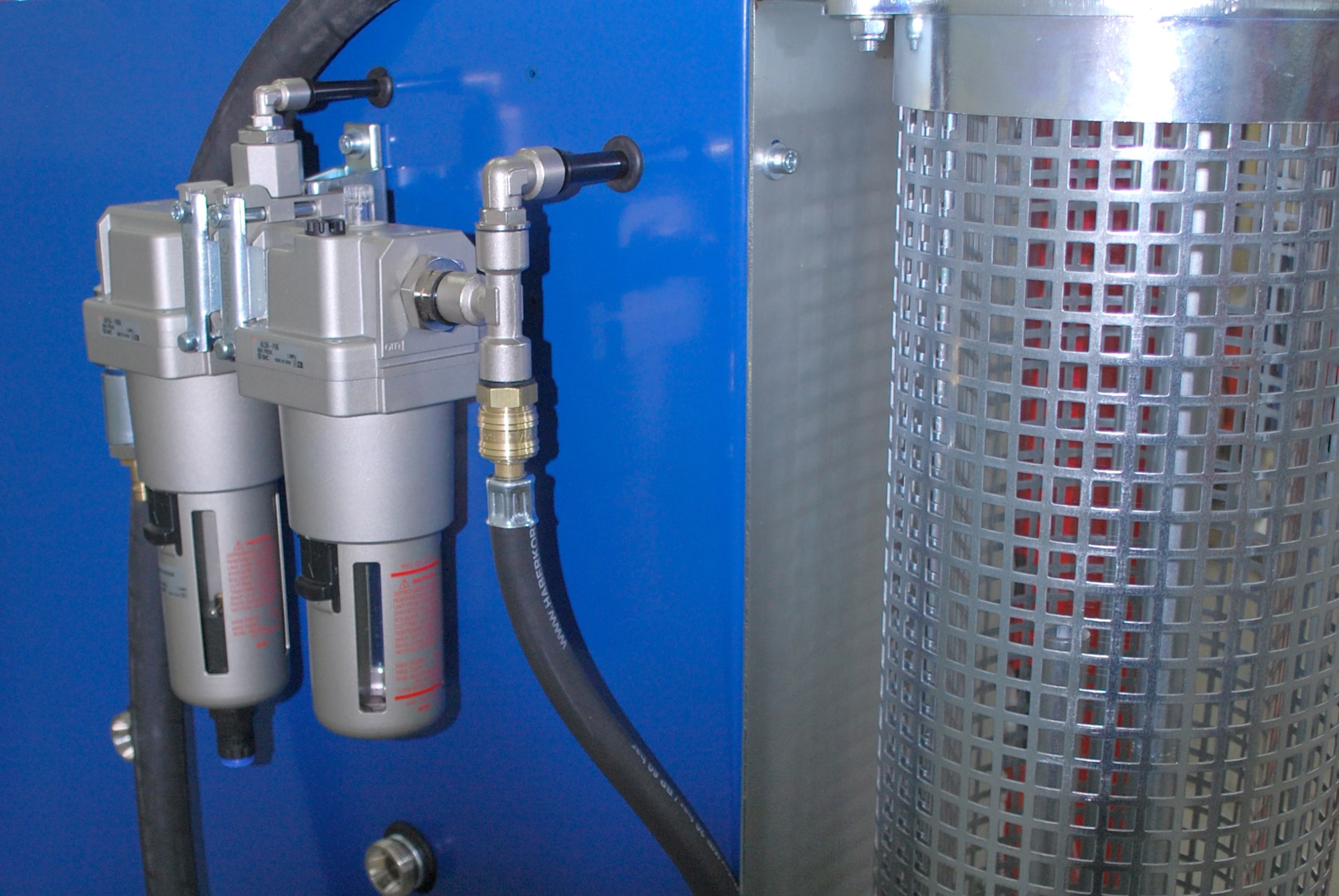

For fast and efficient removal of brake fluid, rubber brake nipples with clear hoses are used. The system comes standard with an air processing unit for both dry and oiled air, ensuring the reliable operation of all pneumatic components.
