End-of-life vehicle depollution system

SEDA Jumboline

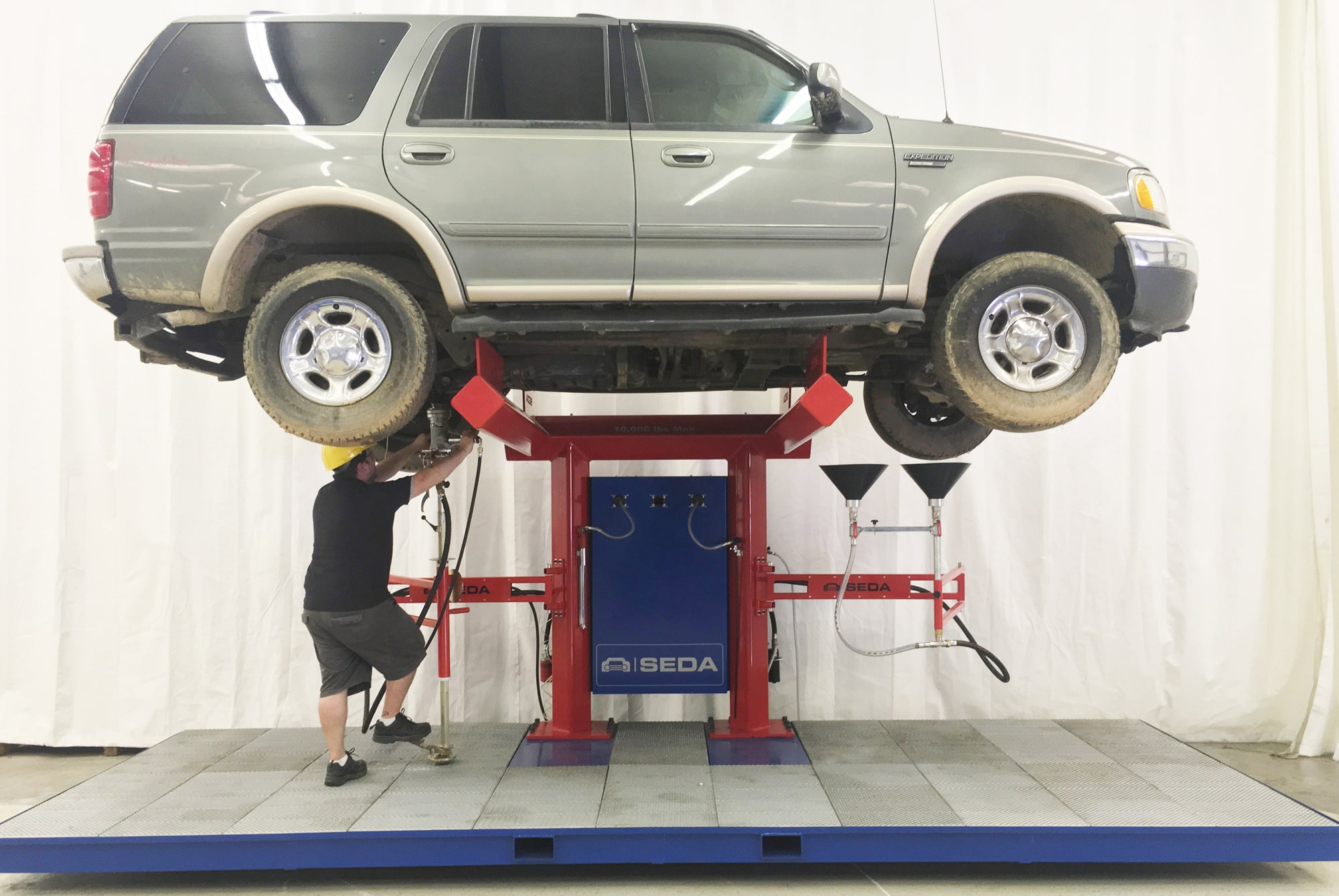

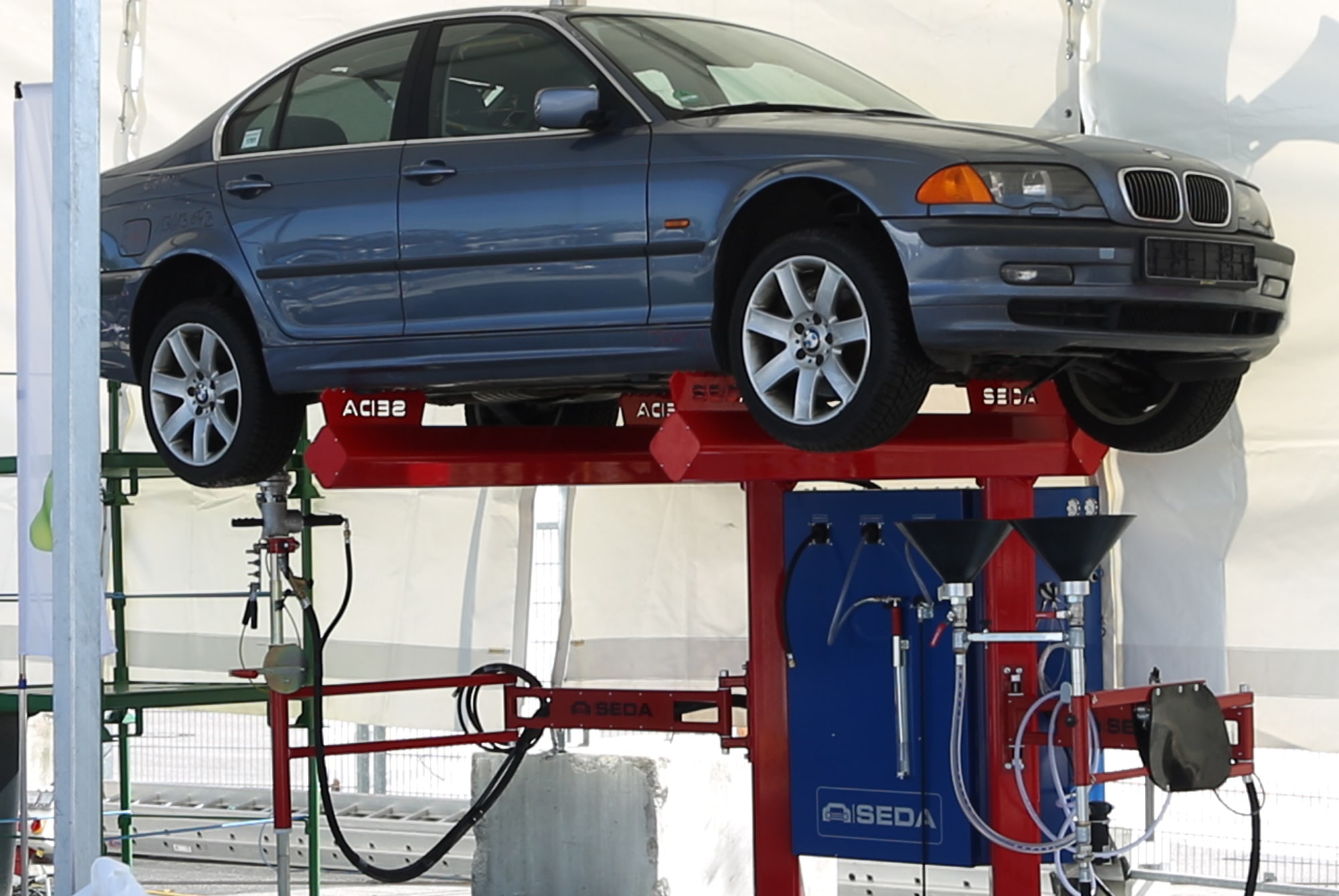

The system comprises an integrated suction system with double diaphragm pumps and a Jumboline-type vehicle carrier installed on a galvanized platform.

A fuel inspection tank enables visual inspection of the fuel, while filters for fuel and waste oil ensure clean processing. A tank tapping device is mounted on the drilling rig swivel arm, which has gas pressure-supported height adjustment for petrol and diesel. There is also a swivel arm with pneumatically height-adjustable double funnels for waste oils. A compressed air connection with an 8-metre hose reel and a coolant connection with a 7-metre hose reel and coolant hose complete the equipment. There is also a windshield water connection with a 7-metre hose reel and a suction lance set. The brake fluid is extracted via transparent hoses using special rubber nipples. Finally, a maintenance unit for dry and lubricated air ensures that the entire system functions reliably

Bookmark
Pump housing with tools, hose reels and filters
Heavy-duty tank drilling device
Fuel managment system
Vehicle carrier type Jumbo
Double diaphragm pumps for gasoline, diesel, used oil, coolant and washer fluid
Vacuum trolley for brake fluid (no image)
Fuel quality control system
Swivel arm for tank drilling device
Swivel arm for used oil with dual funnels
Galvanized steel platform with safety grate

Technical Data

Compressed air8.5 bar – 1,350 l/min
Fluid RemovalGasoline / Diesel
Used oil
Brake fluid
Coolant
Windshield washer fluid
Weight3.500 kg
Dimensions6.5 x 2.5 x 2.4 m

Order Number

A-51073SEDA JumboLine
A-528197SEDA MDS2 platform JumboLine
Optional accessories:
A-527621-ZPPlatform extension (5008 x 561 x 173 mm)
A-528195TPF tank platform with storage tanks for gasoline, diesel, waste oil, windshield washer fluid, radiator fluid
