Safe transport solution for critical and non-critical Lithium-Ion energy storage systems

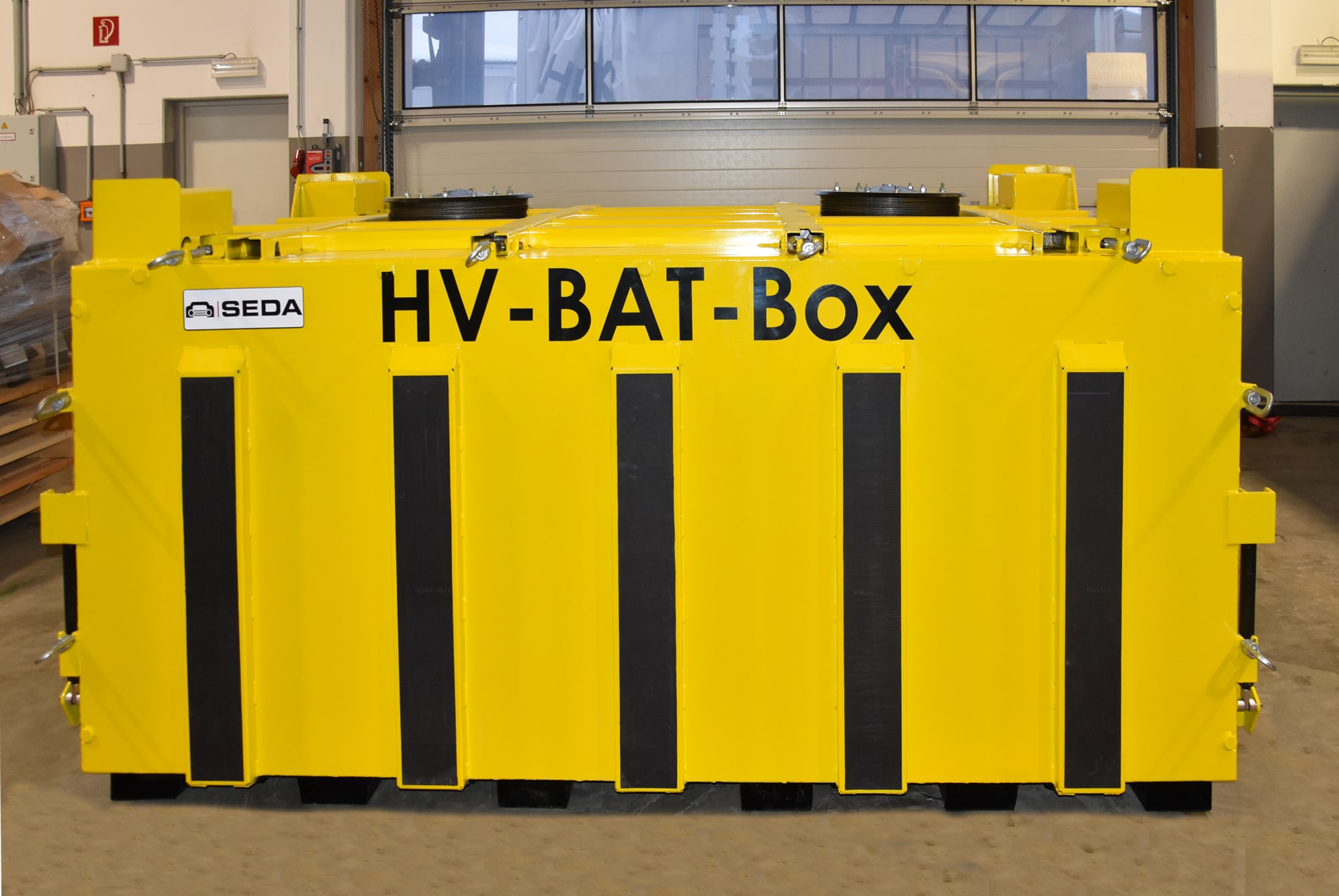

SEDA HV BAT-Box
The SEDA HV BAT-Box is a specially designed, secure transport solution for critical lithium-ion batteries, equipped with an integrated filtration system.
It is BAM-certified and approved under ADR transport regulations for high-vol-tage energy storage systems with capacities of up to 98.48 kWh. For pressure relief, the BAT-Box is fitted with a Hoerbiger valve, providing additional safety during transport. Its generous dimensions enable the safe transport of even the largest vehicle batteries available on the market. A user-friendly loading system is ensured by the side flap with an integrated extendable roller track, facilitating simple and efficient loading and unloading of the BAT-Box.
Bookmark
Stacking slots for up to 3 boxes

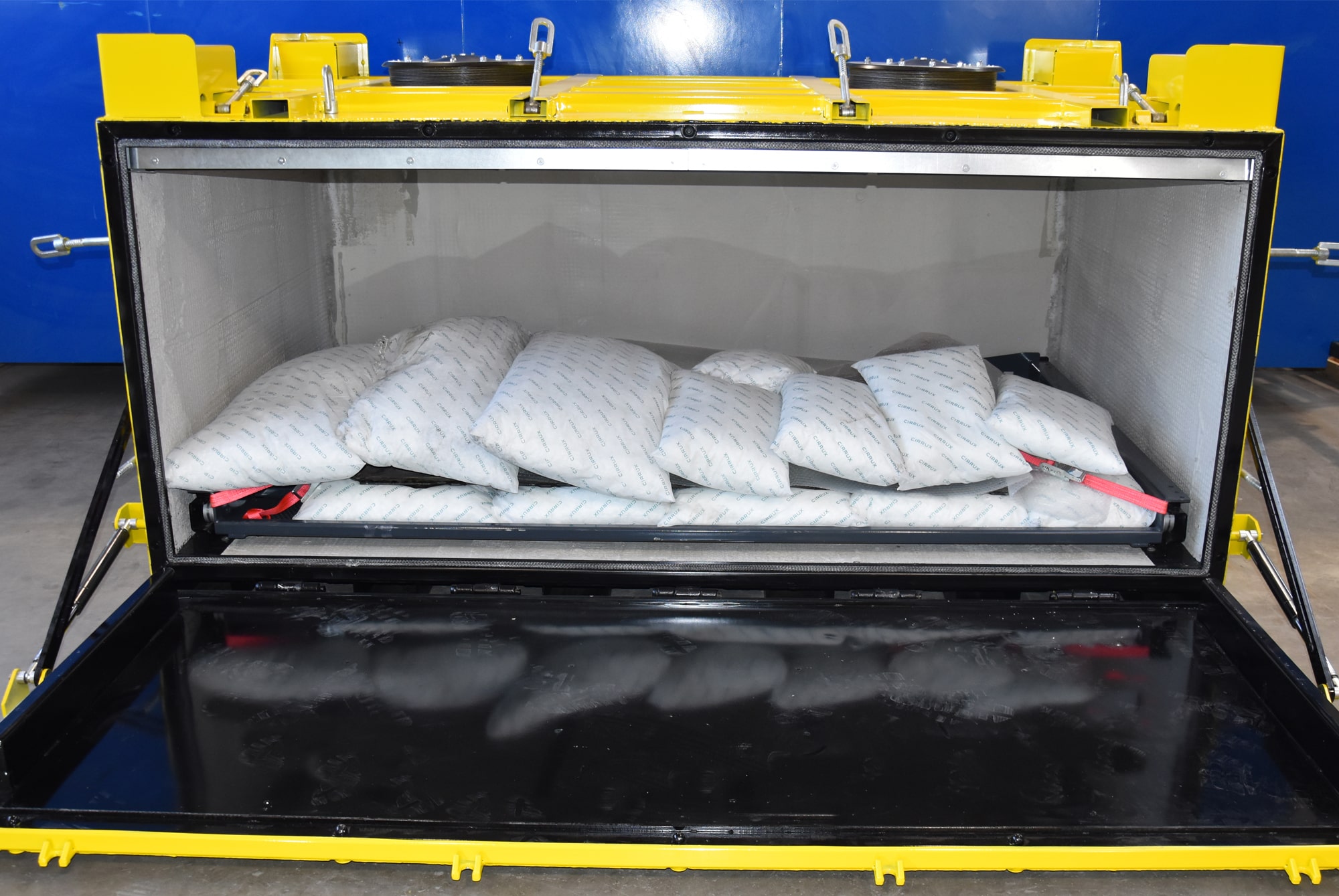

Large storage area
Hoerbiger valves for pressure relief
Extendable roller track with automatic locking mechanism
Door with guide rails for smooth operation
Technical Data
| Internal dimensions | 2.654 x 1.735 x 970 mm |
| External dimensions | 3.192 x 2.121 x 1.567 mm |
| Approved energy content | 98,48 kW |
| dimensions when opened | 3.192 x 3.355 x 1.567 mm |
| Weight | 2.235 kg |
| Maximum load capacity | 1.000 kg |
Order Number
| A-527793 | SEDA HV BAT-Box |
| C-527909 | Glas fiber cushions (48 pcs.) |
| Option | |
| C-527976 | Aerosol-extinguishing generator |
Downloads
Benefits
- ADR-compliant transport including BAM certification
- Designed for the largest EV batteries available on the market
- Neutralization of harmful gases through an integrated filtration system
- Absorption and dissipation of thermal energy

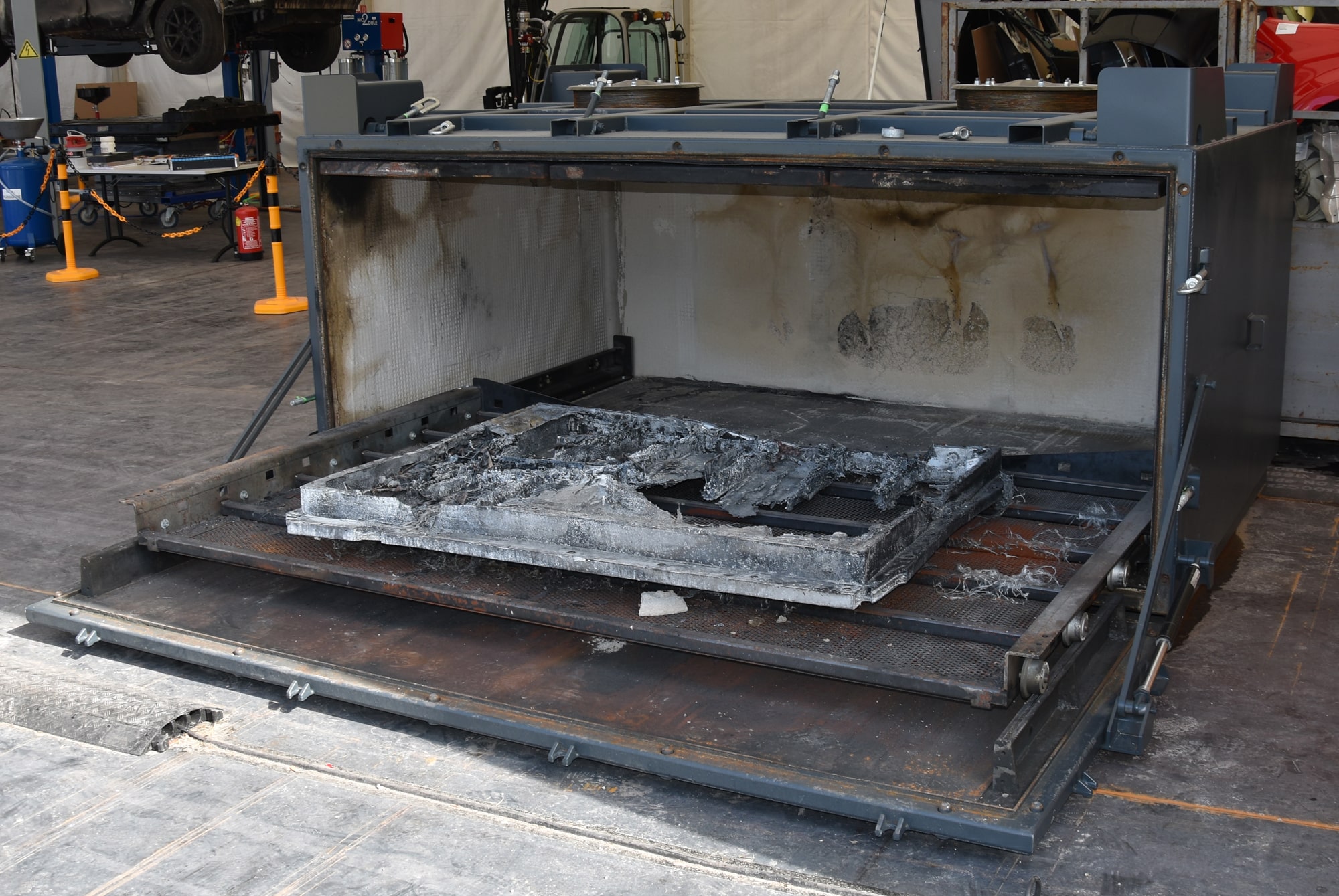

- Containment of liquids, solids and flames
- Extendable roller track for easy loading and unloading
- Stackable (up to 3 units) and lockable for secure storage and transport

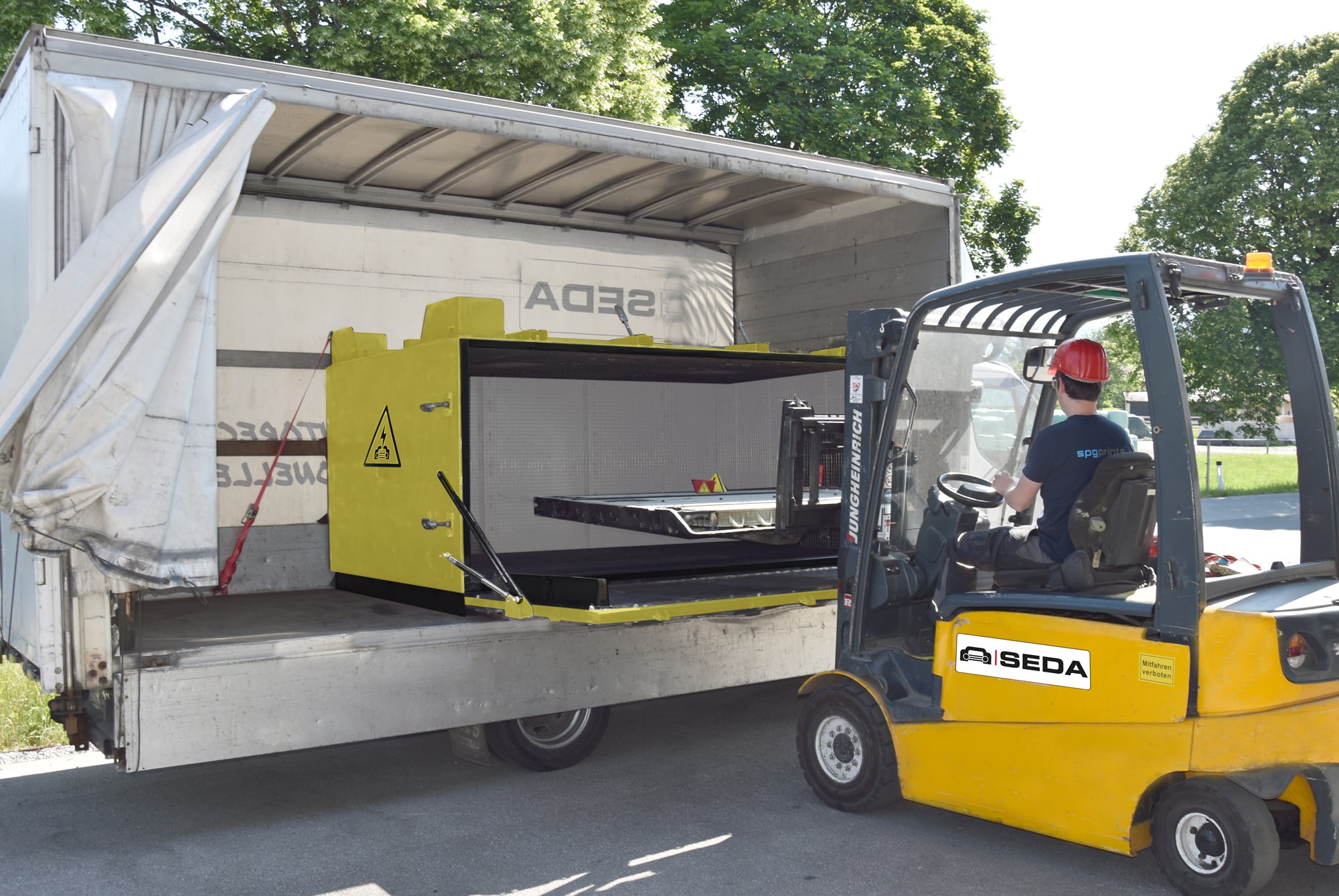

- Suitable for transport on a trailer or 5.5 tonne truck
