fuel Extraction Device

SEDA Greenpoint

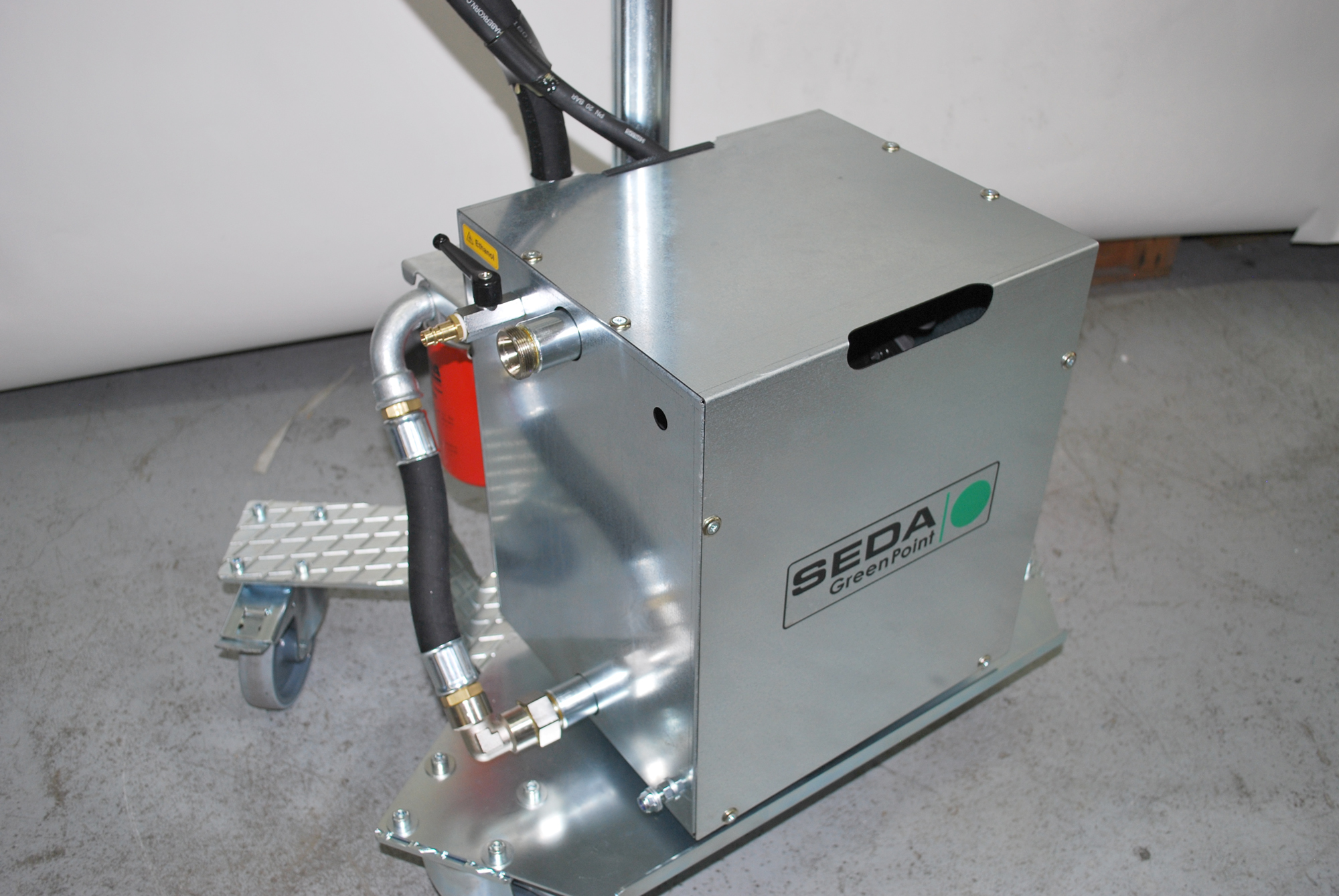

The SEDA GreenPoint is a mobile version of the SEDA Tank Drilling Device, featuring an integrated fuel pump. This allows the tank to be drilled and the liquid directly extracted without requiring a separate draining system.

The SEDA Tank Drilling Device drills precisely into the tank without wasting a drop and extracts the fuel through multiple filtration systems. The powerful double-diaphragm pump enables fast extraction with maximum mobility. As the only drilling device of its kind, the integrated SEDA Tank Drilling Device in the GreenPoint is ATEX-certified, making it suitable for use in explosive environments.

Boot ensures a closed circuit
Pneumatically driven
Fuel monitoring via transparent section
Fine strainer
Secial drill for metal and plastic tanks
Strainer and magnets
Simple switching betwenn hose and drilling extraction
Connection for suction hose with adapter set
Pump for extraction and transfer to a storage tank

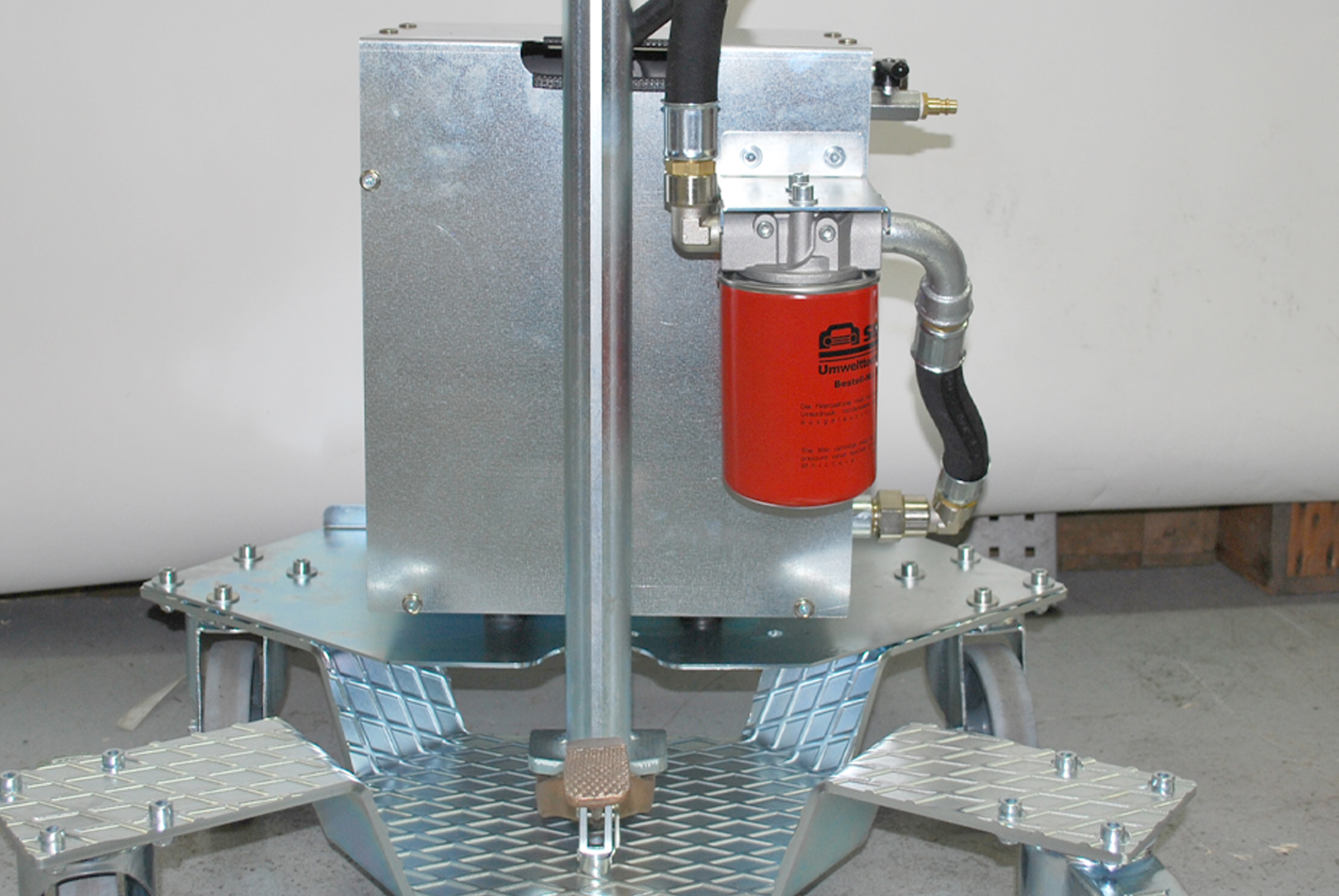

Lever for effortless height adjustment
Pump housing
Robust design, easy to maneuver

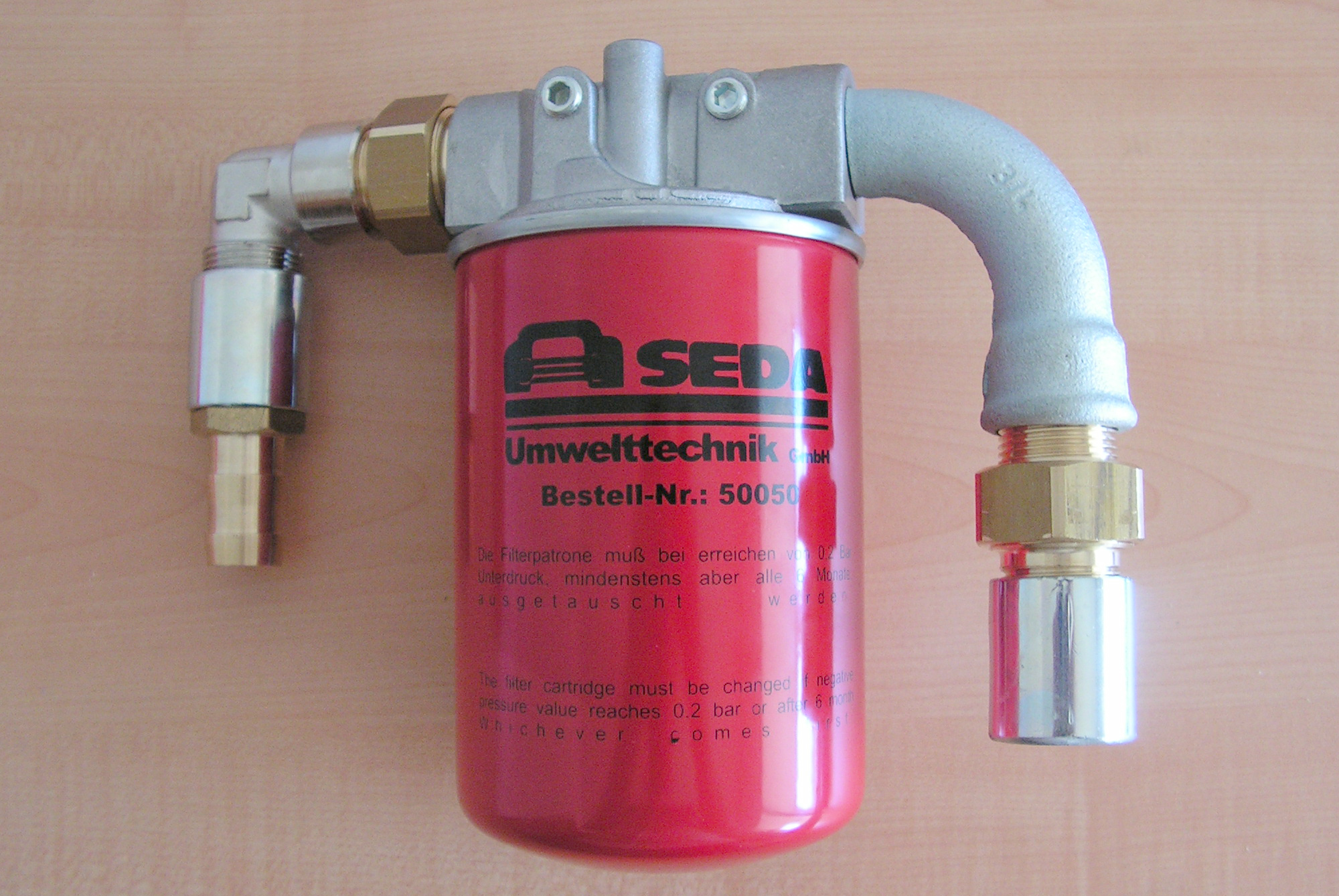

Fuel filter
Durable and wear-resistant wheels with brakes

Technical data

Compressed air8 bar
Weight55 kg
Special drill Ø20 mm
Rotational speedmax. 220 rpm
Cutting speedmax. 10,4 m/min

Order Number

S-40200SEDA GreenPoint fuel set
Alternative device
S-40300SEDA GreenPoint DUO fuel set

Downloads

Additional information

Height adjustment and drilling feed are controlled by a gas spring and foot pedal. After drilling, a specially designed rubber seal ensures drip-free extraction under vacuum conditions, allowing the system to operate easily and cleanly. It features a special peeling drill for metal and plastic tanks.

At the drill head, multiple systems, including sieves and magnetic rings, filter out coarse impurities to reduce contamination along with the inline filter.
