Depollution and dismantling system
SEDA DrainLift

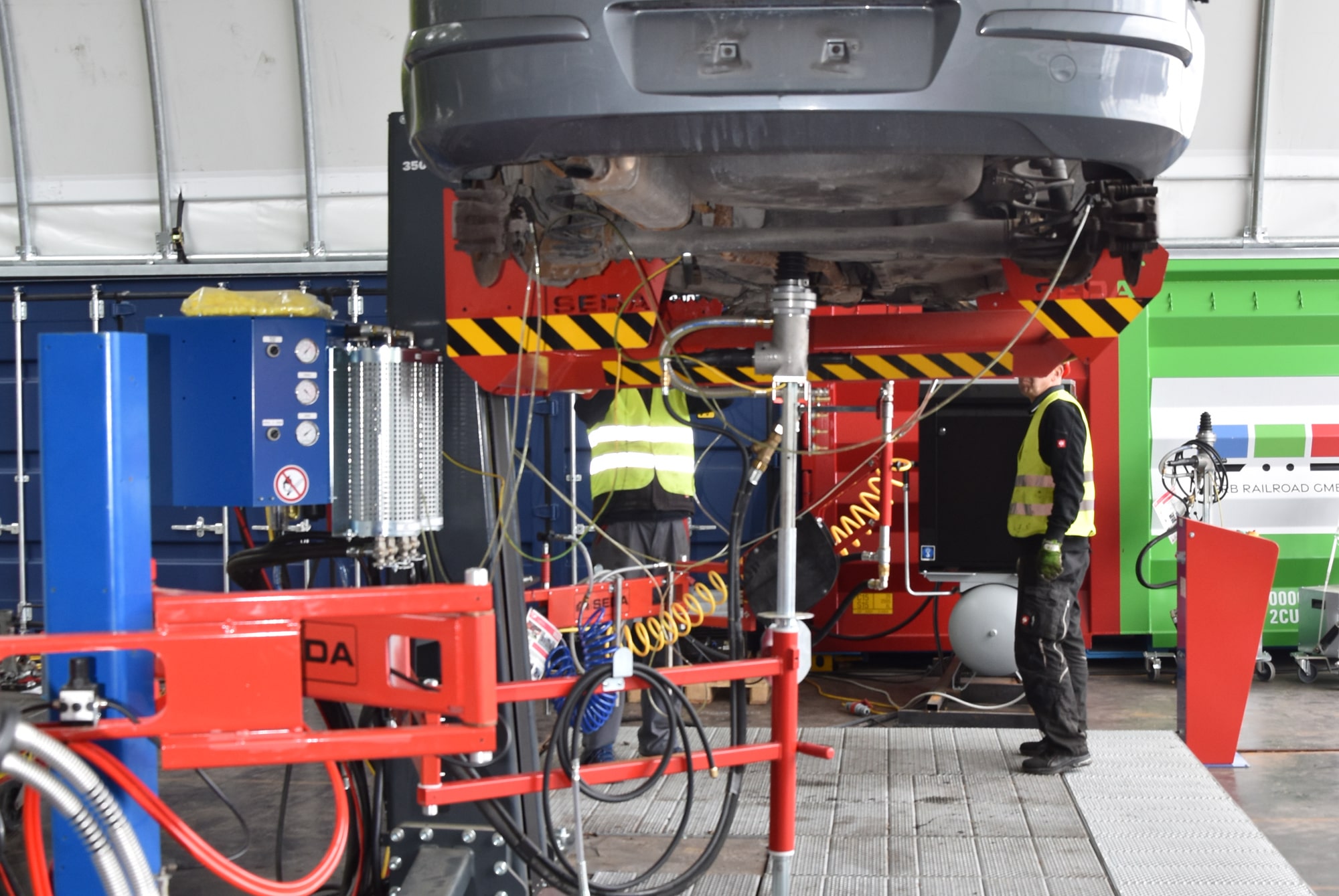

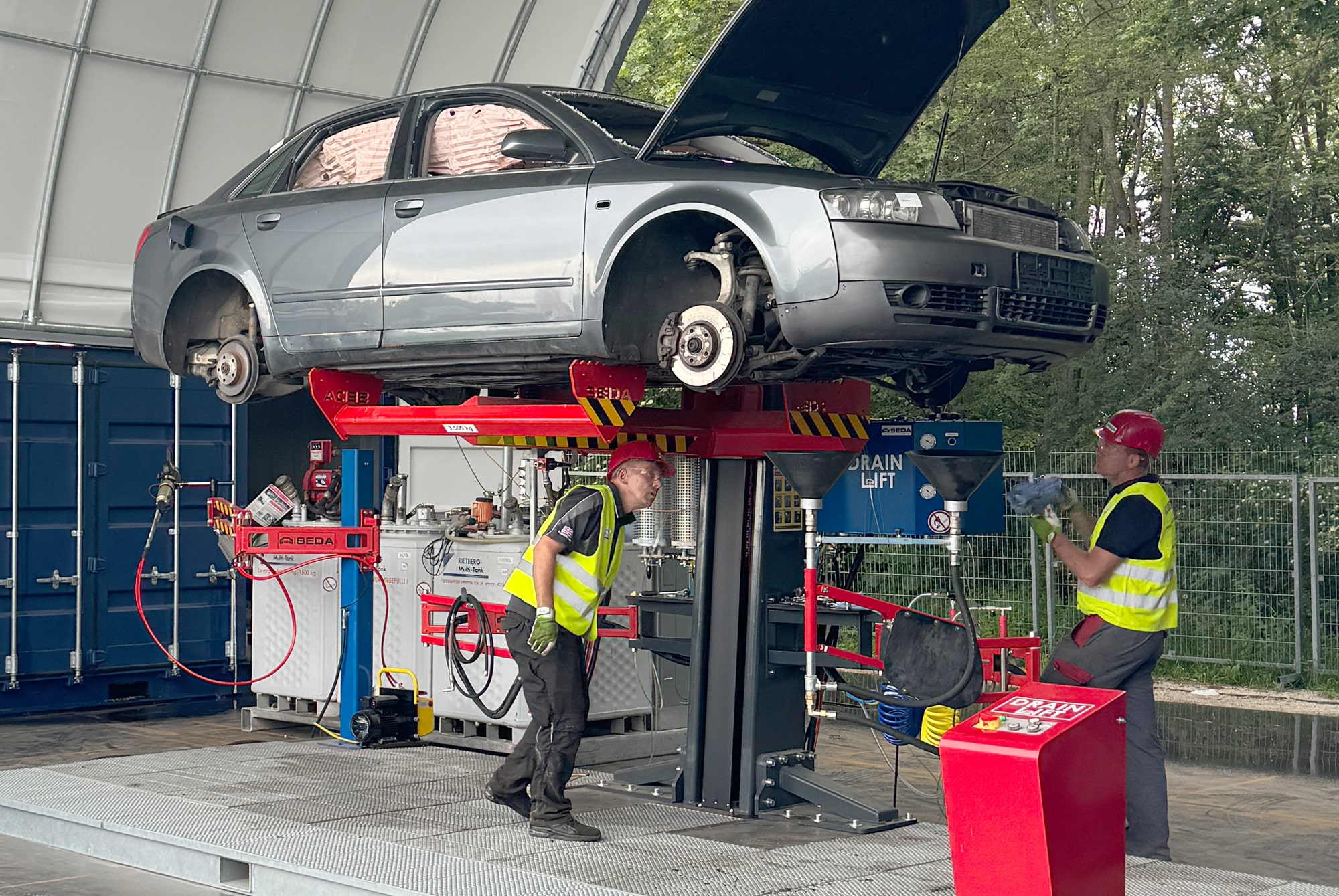

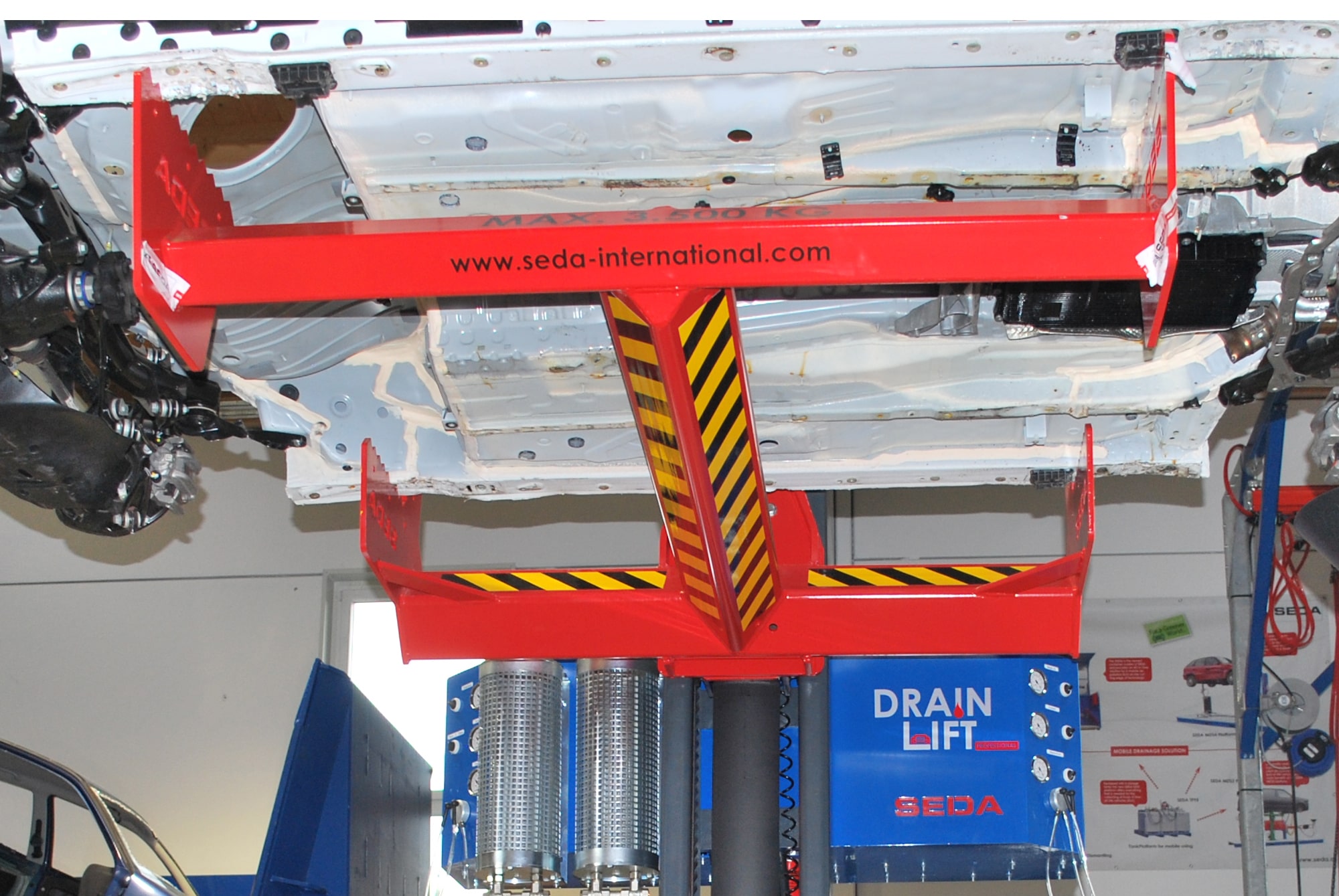

The SEDA DrainLift seamlessly combines an electro-hydraulic and pneumatic single-column lift with the proven SEDA depollution system.
The Drainlift system complete with depollution makes light work of vehicle processing and basic dismantling tasks can be performed effortlessly. This system is also highly versatile, suitable for use with a catchment tray, a mobile platform, or integrated into a container.
Bookmark
Technical data
| Lifting height | up to 1.800 mm |
| Total height | 2.410 mm |
| Lifting time | approx. 30 s |
| Load capacity | 3.500 kg |
| Power | 3 kW |
| Power supply | 3 Ph / 400 V / 50 Hz |
| Space requirement | 6 x 4,5 x 3,8 m |
| Compressed air | 8 bar – 1.210 l/min |
| Liquids | Gasoline / Diesel Used Oil Brake Fluid Coolant Windshield Washer Fluid |
Order number
| A-51090 | SEDA Drainlift |
| Optional accessories | |
| A-527508 | Drip trays |
| A-527625 | Vehicle trolley V 18 |
| Alternative versions | |
| A-51091 | on platform |
| A-51127 | in container |
Downloads
Benefits
- Depollution and dismantling system

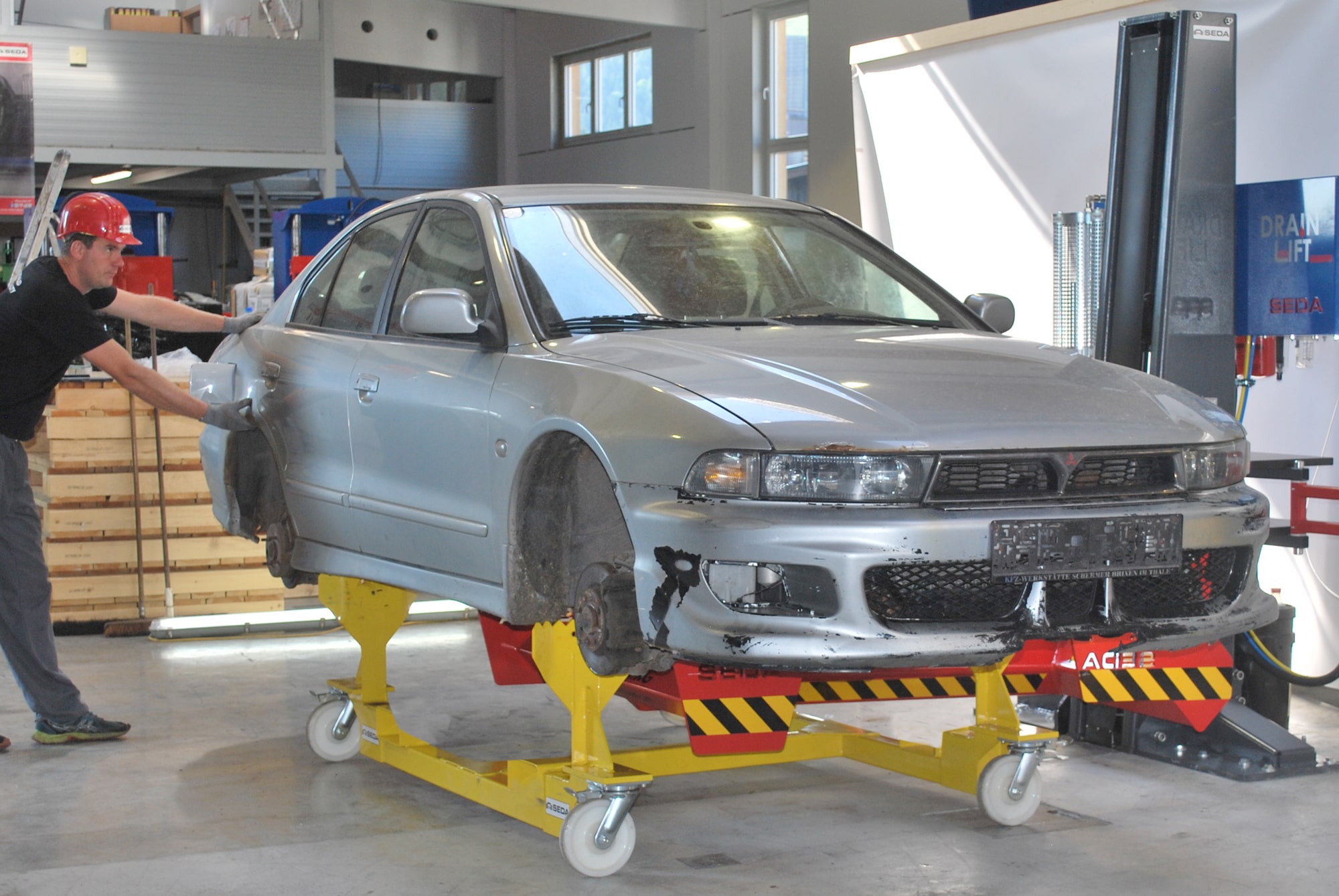

- Forklift-free loading and unloading possible with the SEDA trolley
- Compatible with a platform or container setup
- Electro-hydraulic / pneumatic control system (EX-certified)
- Strong and robust
