ELV electrical cable recycling

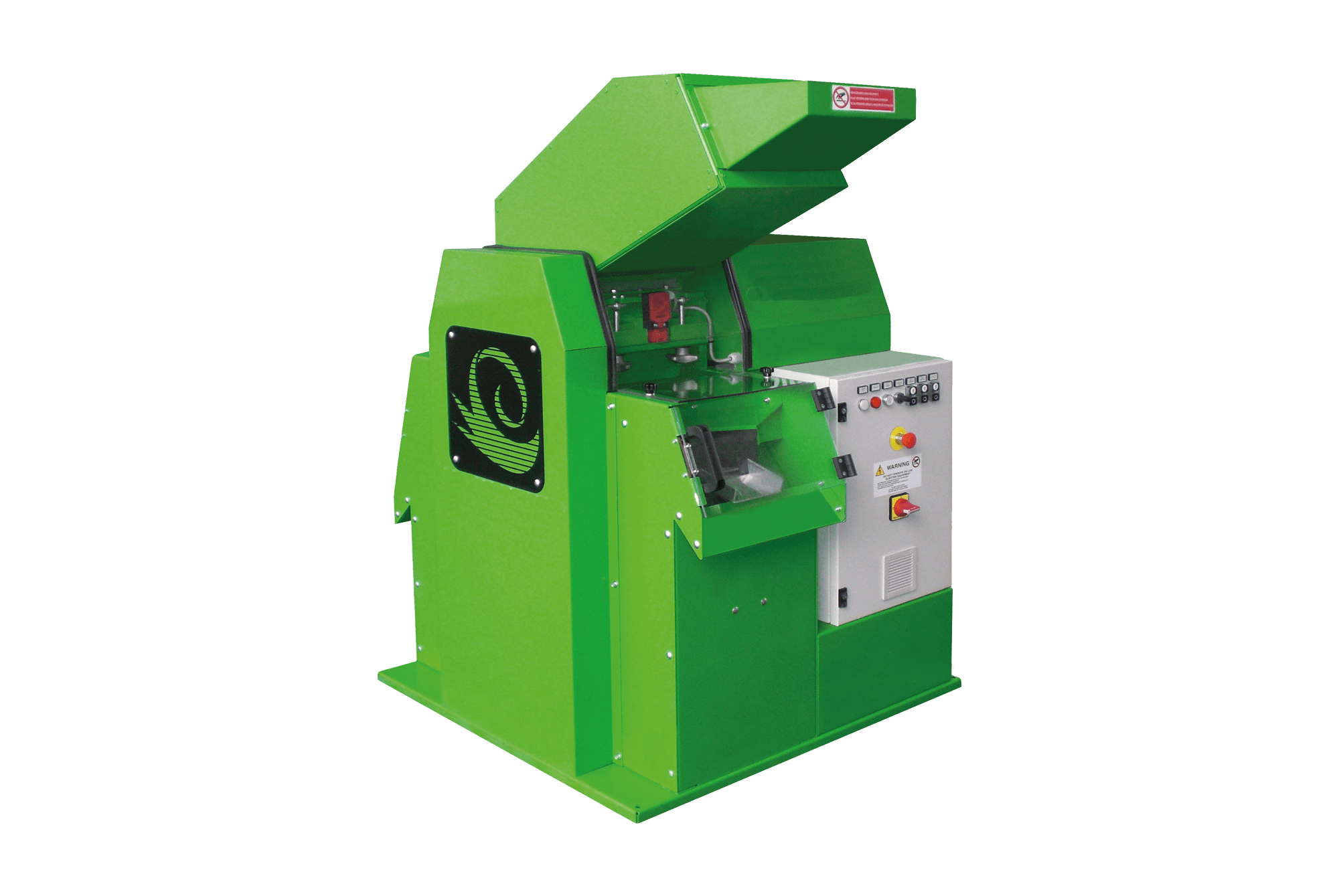

SEDA Cable Shredder
A complete recycling system for automotive cables

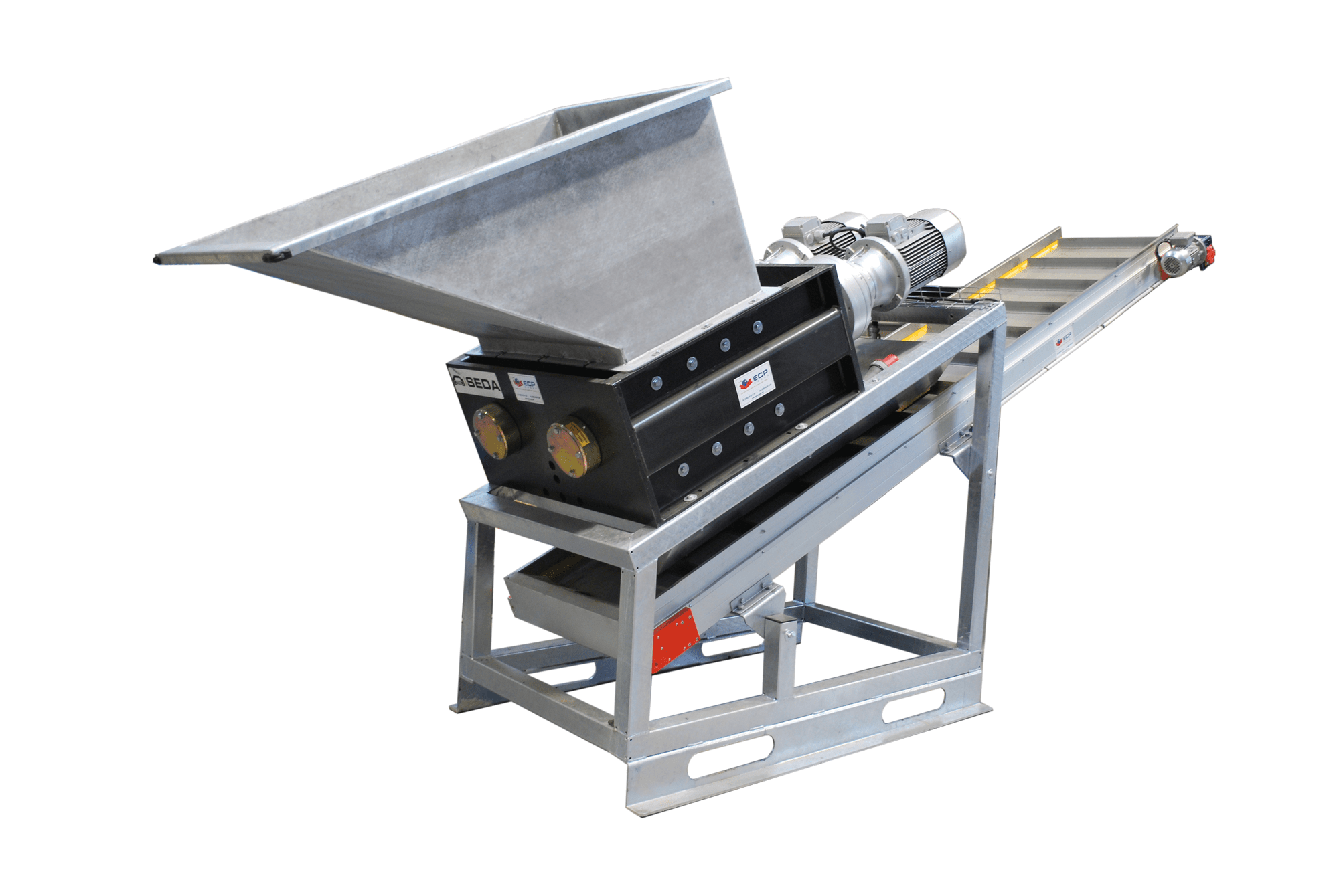

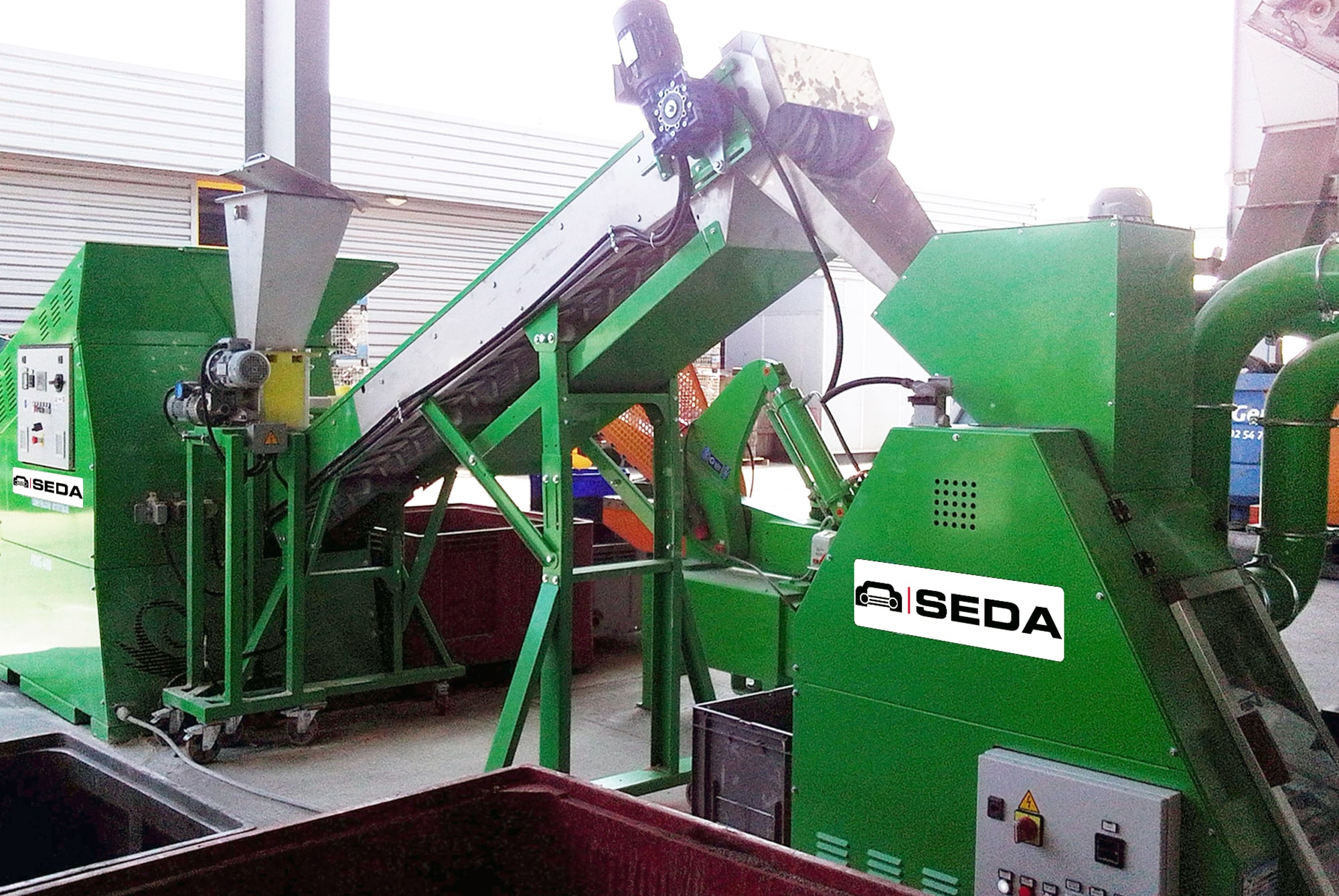

The system includes the SEDA Cable Shredder 315 EKO, complemented by a pre-shredder with a conveyor belt, a magnetic separator, and a powder dosing unit to prevent screen clogging.
This complete system is specifically tailored to the needs of auto recyclers. For optimal results, it is recommended to mix automotive cables with household installation cables (remove all plugs beforehand).
Bookmark
Feed Slot for copper and aluminium electrical cables
Soundproof grinding system
Material output
easy operation
Special vibrating Separator
Compact design
Technical Data
| 215 EKO | |
| Dimensions | 900 x 800 x 1.500 mm |
| Weight | 350 kg |
| Power consumption | 4,5 kW, 400V 50 Hz, 3 Ph+N |
| Power | appr. 50 kg / h |
| 315 EKO | |
| Dimensions | 1.000 x 1.000 x 1.570 mm |
| Weight | 458 kg |
| Power consumption | 6,4 kW, 400 V 50 Hz, 3 Ph+N |
| Power | appr. 80 kg / h |
| 415 EKO | |
| Dimensions | 1.350 x 1.350 x 2.135 mm |
| Weight | 900 kg |
| Power consumption | 10,5 kW, 400 V 50 Hz, 3 Ph+N |
| Power | appr. 150 kg / h |
Order Number
| C-31001 | Cable shredder 215 EKO |
| C-31003 | Cable shredder 315 EKO |
| C-31004 | Cable shredder 415 EKO |
| C-31080 | Complete System with pre-shredder, powder dosing unit, and cable shredder |
| C-31083 | Pre-shredder with a conveyor belt and a magnetic separator |
| C-31081 | Powder dosing unit |
Downloads
Benefits
- For copper and aluminium electrical cables
- Minimum diameter of 2 millimeters
- Soundproofed
- Easy operation
- Simple maintenance
- Compact design
Video
