Automated Fire Suppression for High-Risk Locations (2.5 m³ to 35 m³)
SEDA Aerosol Fire Extinguishing Systems

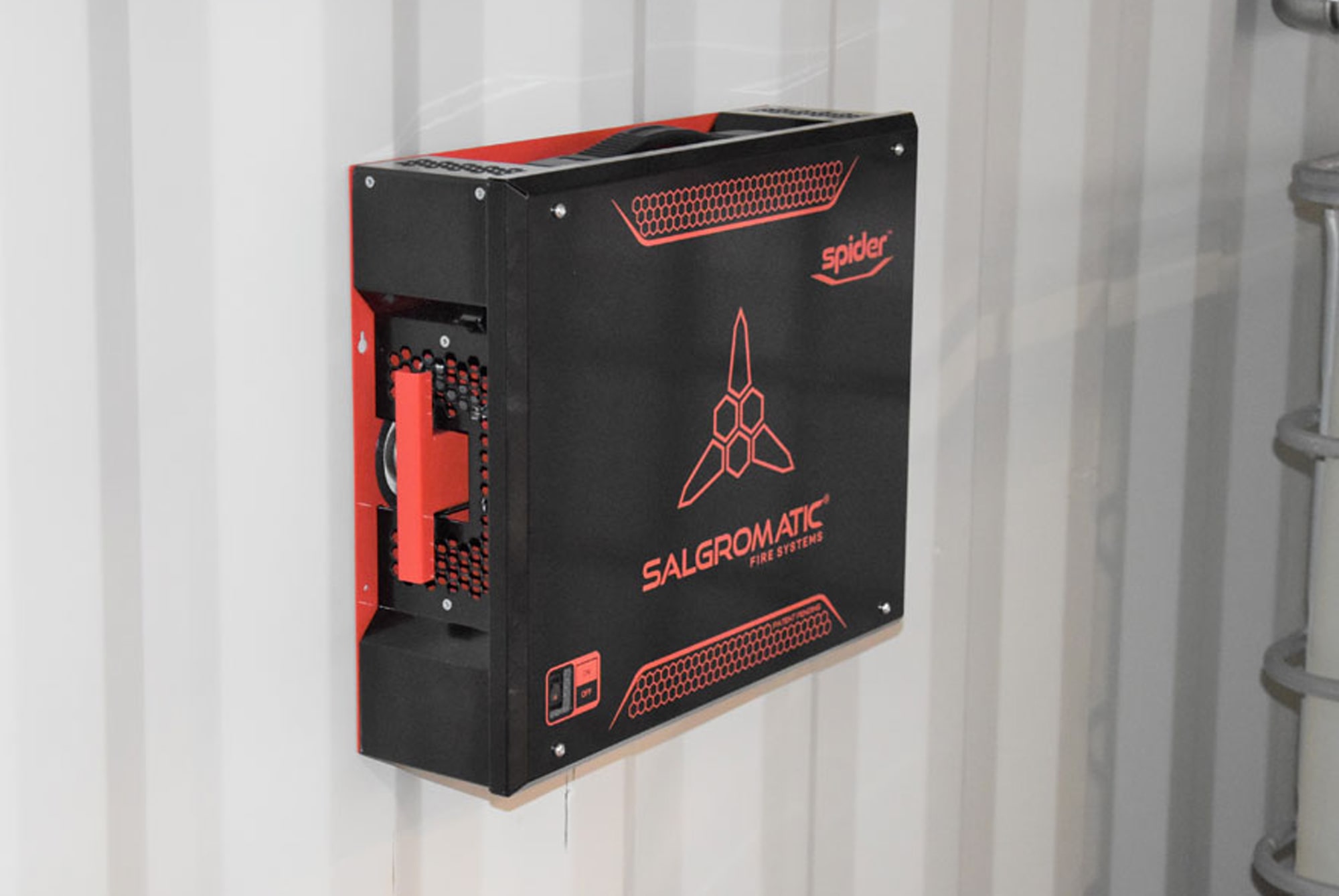

The HEX-MAX fire extinguishing device automatically activates at 170°C or upon direct contact with flames via a heat-sensitive activation wire. The SPIDER fire suppression system features automatic activation at 72°C/93°C (standard) or 110°C.
- Quck and simple solution for hazardous substances such as HV accumulators and batteries
- Containers and boxes for storage and transport
- Industrial electrical and transformer areas
- Energy storage systems
Bookmark
Technical Data
HEX-MAX
| Dimensions | L 158 mm, Ø 360 mm |
| Total weight | 2 kg |
| Protected Room Volume | 2.5 m³ |
SPIDER
| Dimensions | 504 x 404 x 145 mm |
| Total weight | 12 kg |
| Protected Room Volume | 35 m³ (Additional capacities available upon request) |
Order Number
| Y-527900 | Aerosol Fire Extinguishing Device HEX-MAX (2.5 m³) |
| Y-527958 | Aerosol Fire Extinguishing Device SPIDER (35 m³) |
Downloads
Benefits
- Explosion-proof
- Based on a non-toxic and non-reactive solid compound
- Autonomous and automatic, no external or internal power supply required
Video
Additional Information
How it Works:
A stationary, heat-sensitive ATAC wire discharges the extinguishing unit at a specific temperature or upon direct contact with flames.
Note:
Once the device is activated, the area must be evacuated, as inhaling aerosol particles from the extinguishing system can be harmful.
